US ER INT E RFA CE PARA METE RS

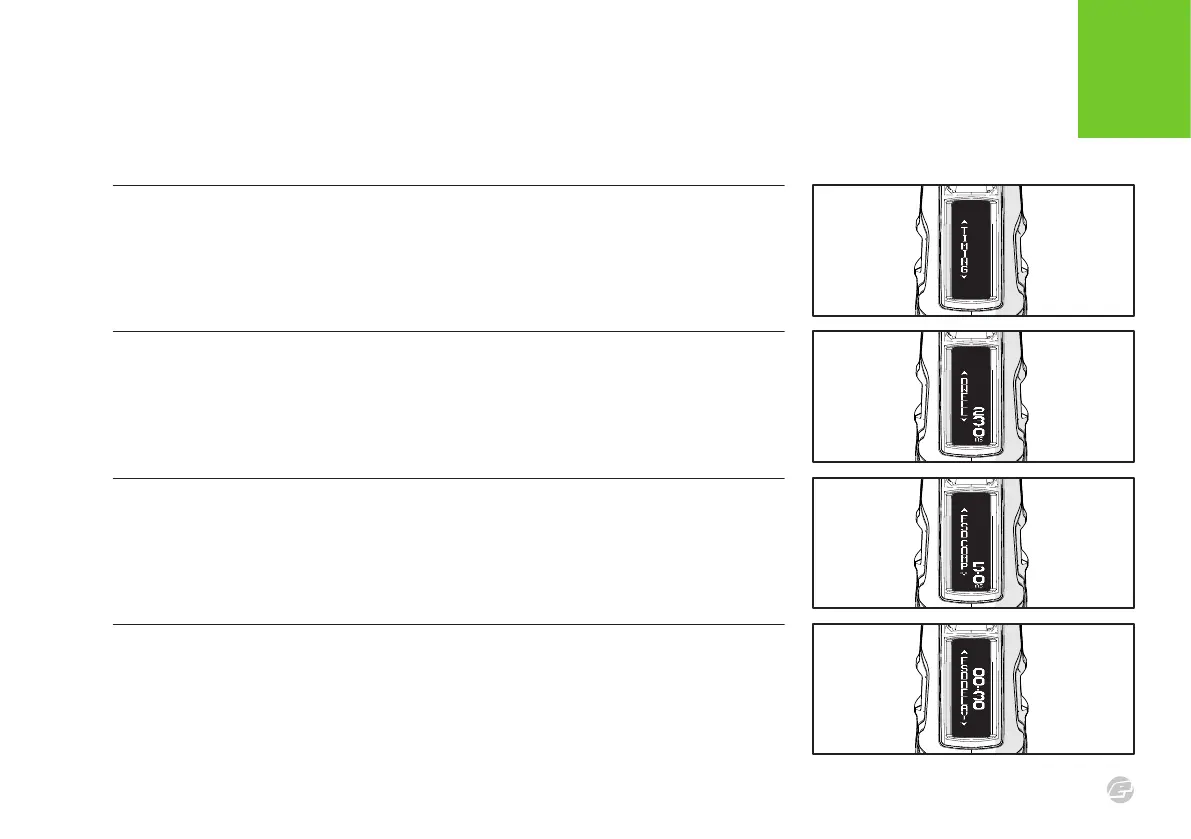

FIG .4
FSD DELAY PARAMETER
The amount of time the marker must be at
rest before the FSD COMP is applied to a shot.
> Range : 00:00 - 04:00 minutes in 1
second increments.
FIG .3
FSD COMP PARAMETER
‘First Shot Drop-off’ is a velocity drop of the
first shot fired after the marker has been at
rest. FSD COMP is added to the DWELL in
order to compensate.
> Range : 0.0 - 5.0 ms (milliseconds) in
0.1 increments.
FIG .2
DWELL PARAMETER
The amount of time that the solenoid valve is
energised during each firing cycle.
> Range : 5.0 - 35.0 ms (milliseconds) in
0.1 increments.
FIG .1
TIMING MENU
The parameters on the TIMING menu control
the energise time of the solenoid valve.
