SL3 INLINE REGULATOR
1
The Inline Regulator mounting threads on the Geo2
and SL3 are NOT compatible with older style regulator
threads (Ego 10 and older).
2
ONLY use the SL3 Geo2 Spring with the GEO2.
3
If the Purge Poppet Assembly is removed for
maintenance ensure is it re-installed correctly, failure to
do so may seriously damage the Geo2 solenoid.

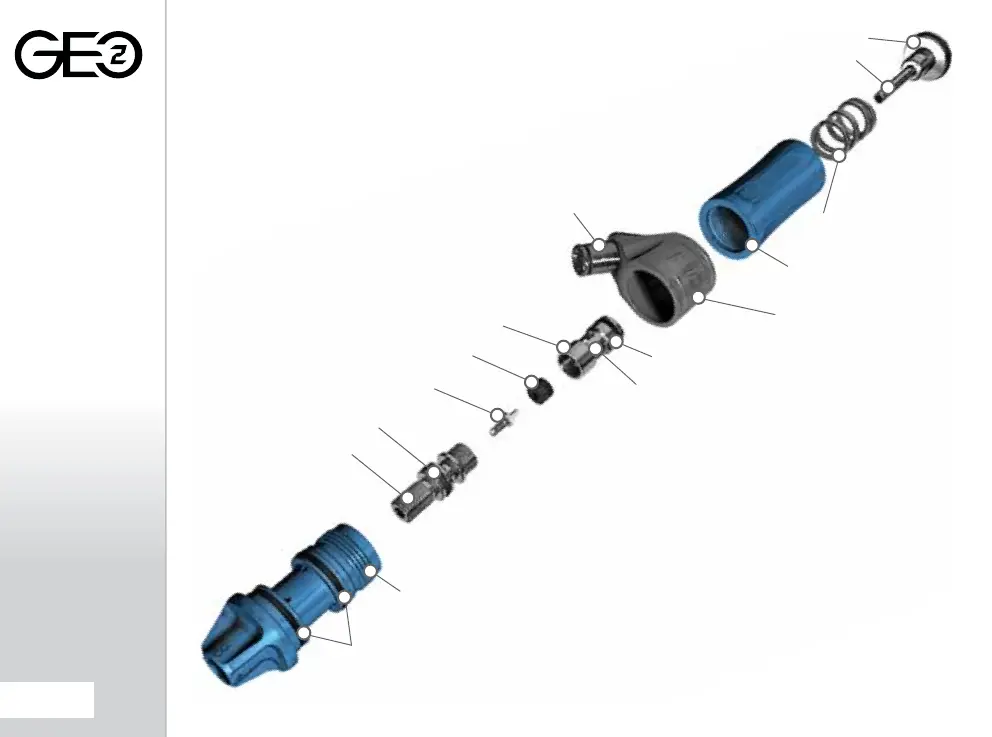

ADJUSTER SCREW
#011 NBR 70
PURGE POPPET ASSEMBLY
3
REGULATOR SEAL
ADJUSTER TOP
MACROLINE FITTING
INLINE REGULATOR
SPRING
2
INLINE REGULATOR
PISTON
#016 NBR70
INLINE REGULATOR
BOTTOM
#011 NBR70
INLINE REGULATOR
SWIVEL
INLINE REGULATOR
TOP
1
#008 NBR70
#016 NBR70
8.
ORIENTATION
