PLANET ECLIPSE GEO2 - Page 9

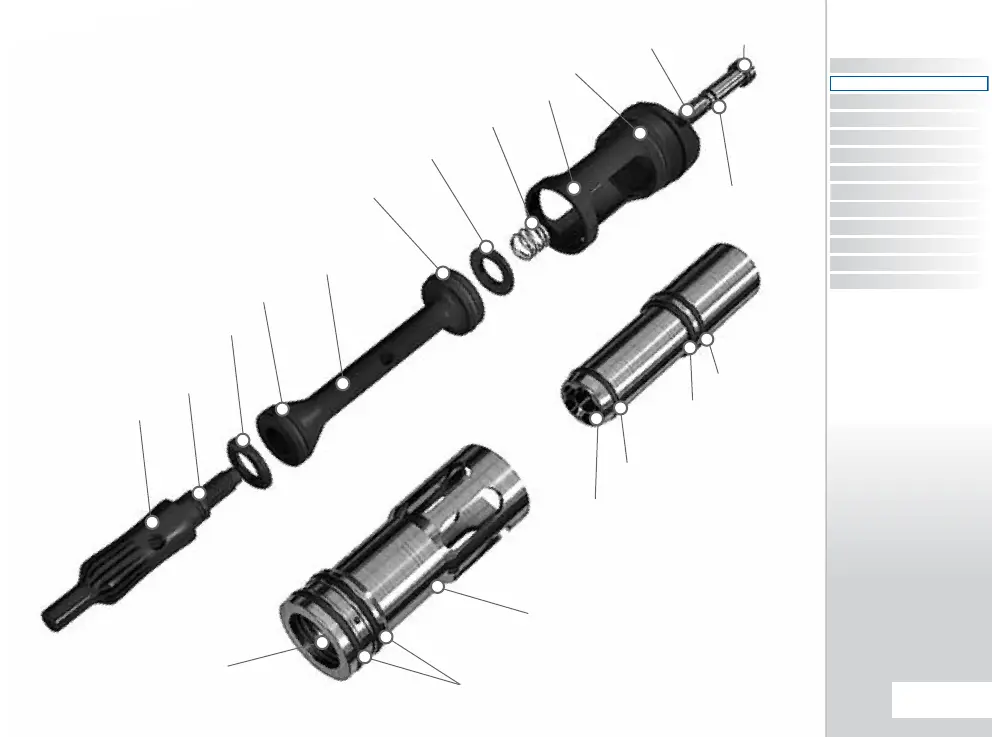

GEO2 BOLT SYSTEM
1
The Prop Shaft does not need to be fully
disassembled for basic maintenance.
Only if a leak around the Prop Shaft
screw develops should disassembly take
place.
1
PROP SHAFT TIP
020 NBR70
017 NBR70
CAN
BOLT
#013 NBR70
14X2 HNBR70
#015 NBR90
7X1 NBR70
FRONT BUMPER
14X2 HNBR70
PROP SHAFT
14X2 HNBR70
REAR BUMPER
PROP SHAFT SPRING
PROP SHAFT BACK CAP
20X2 NBR70
#009 NBR70
4X1 NBR70
PROP SHAFT SCREW
