R6M SPECIFICATIONS
Operation ........................................................................................ 4.8V to 6.0V
Idle current (transmitter and receiver on, no servos connected) ... 40mA
WARNING!
Warning: The R6M Receiver must not be operated below 4.4V!
Warning: Incorrect connection may cause damage and/or receiver failure!
Warning: Exposure of the receiver to high vibration, damp or wet conditions may cause it to stop working!

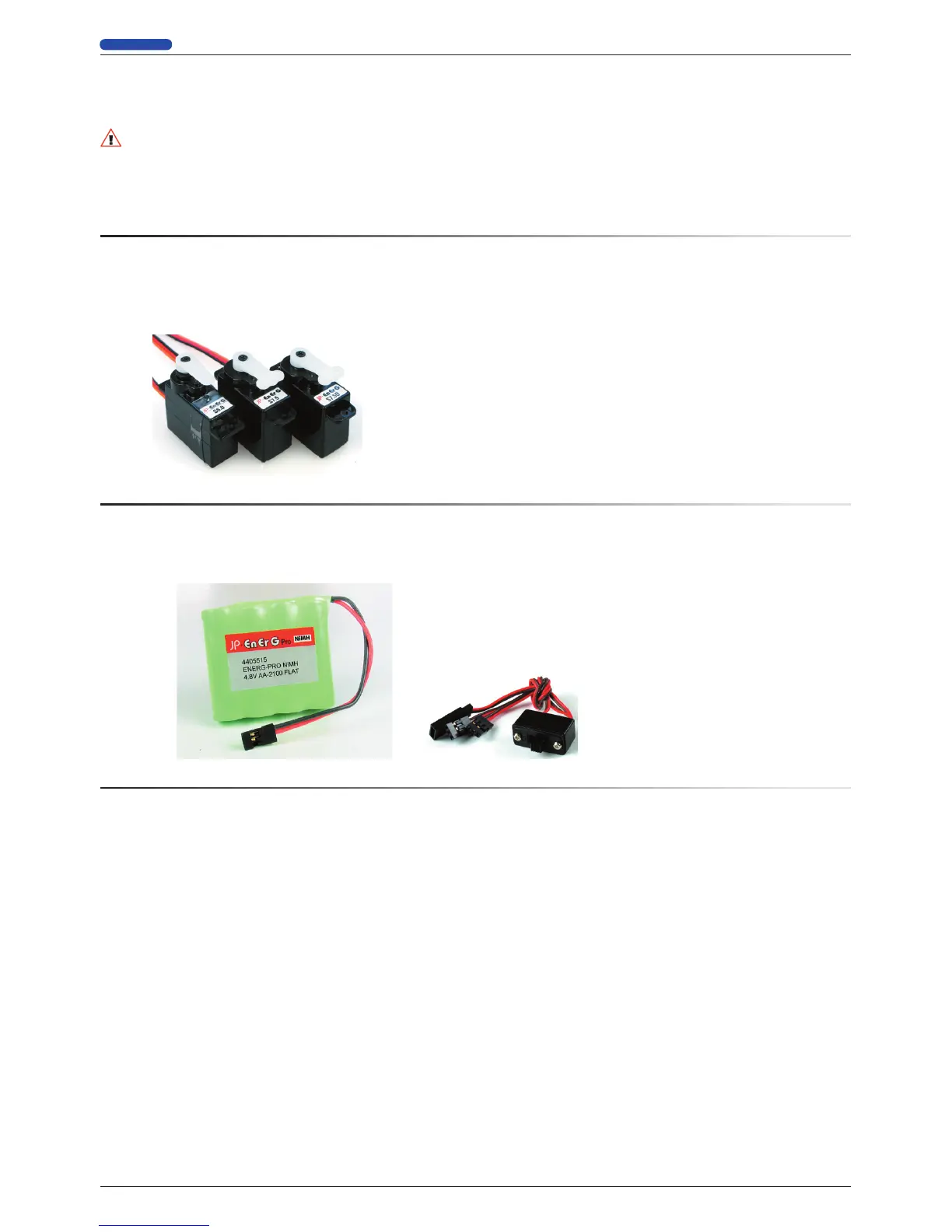

SERVOS
Servos are not supplied.
The following JP EnErG servos have been extensively tested and flown with Planet 5 and should be used with this
system:
7712105 SUPER MICRO 6.0g SERVO (S6 EnErG)
7712110 SUPER MICRO 7.5g SERVO (S7.5 EnErG)
7712115 SUPER MICRO DIGITAL 7.5g SERVO (S7.5D EnErG)
BATTERY AND SWITCH
Batteries and switch are not supplied.
The folowing 4.8V battery and switch are recommended:
4405515 ENERG-PRO NiMH 4.8V AA-2100 FLAT
7721049 SWITCH & CHARGING HARNESS
BINDING TRANSMITTER TO RECEIVER
A working 2.4Ghz transmitter and receiver have a coded, 'bound' relationship with each other. The setting up of
this relationship is known as 'binding'.
In a 'bound' transmitter/receiver relationship the receiver is exclusively bound to your transmitter and can only
respond to signals received from that transmitter. It will not respond to any other device or transmitter.
Once a transmitter is bound to it's receiver, re-binding of transmitter and receiver is not normally required.
However, by binding your receiver, for example, to a friend's Planet 5 transmitter, the unique relationship between
your original transmitter and receiver will be broken. Should you wish to - or need to, re-establish or 'bind' your
transmitter with your receiver once more; proceed as follows:
HOW DO I RECOGNISE WHEN MY RECEIVER IS NOT BOUND?
Upon connecting the battery in the model the receiver status indicator LED will flash on and off slowly regardless
of whether the transmitter is switched on or not. Even when the transmitter is switched on; no control or change
in the slow flash of the LED will be seen.
HOW DO I BIND RECEIVER AND TRANSMITTER?
▼ 1. Switch off the transmitter.
▼ 2. Connect receiver battery. Press the binding microswitch on the receiver undersurface briefly once with
your fingernail or a small screwdriver.
