Planet GS-4210 SERIES Quick Installation Guide

13

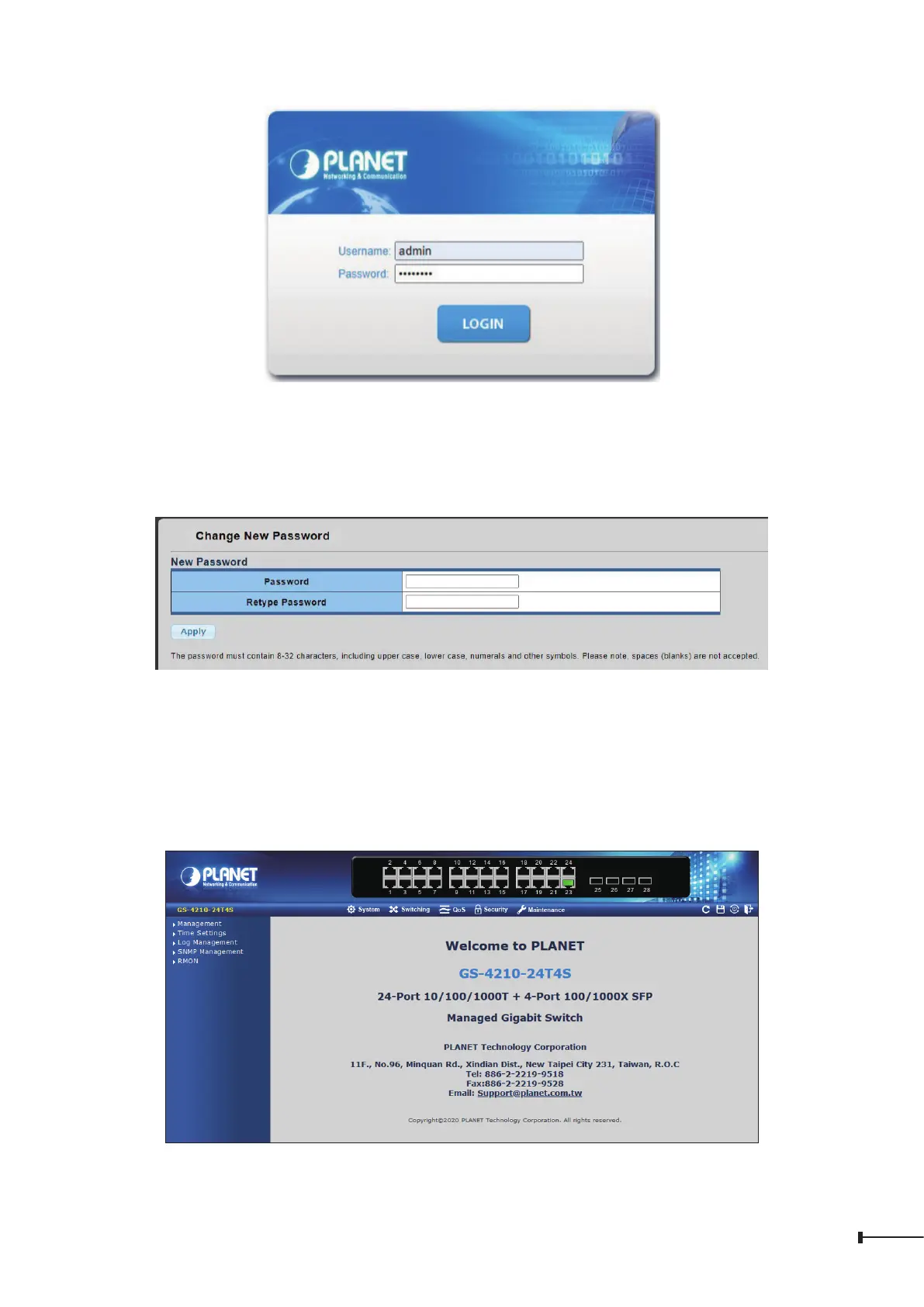

Figure 4-4: Login Screen
6. Afterloggingin,youwillbepromptedtochangetheinitialpasswordtoaperma-
nent one.
Figure 4-5: Create a New Password
7. Enter thedefaultusername and password,thenset a newpasswordaccording to
the rule-based prompt and conrm it. Upon success, press any key to return to
theloginprompt.Loginwith“admin”andthe“newpassword”toaccesstheWeb
interface.
Figure 4-6: Web Main Screen of Managed Switch

Planet GS-4210 SERIES Specifications

General

Power Input	100-240VAC, 50/60Hz
Enclosure	Metal
Product Type	Managed Switch
Ports	24 x 10/100/1000BASE-T, 4 x 100/1000BASE-X SFP
MAC Address Table	8K
Jumbo Frame	9K Bytes
Operating Temperature	0°C to 50°C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
Installation	Rack-mountable
Dimensions	440 x 180 x 44 mm (W x D x H)
Weight	GS-4210-24UP4S: 2500g
