3. Terminal Setup

To congure thesystem, connect aserialcable toaCOM port on a PC or notebook

computerwhiletheotherendtoRJ45consoleportoftheManagedSwitch.

Managed Switch

PC / Workstation

with

Terminal Emulation Software

Serial Port

RS232 to RJ45 Cable

Console Port

RJ45

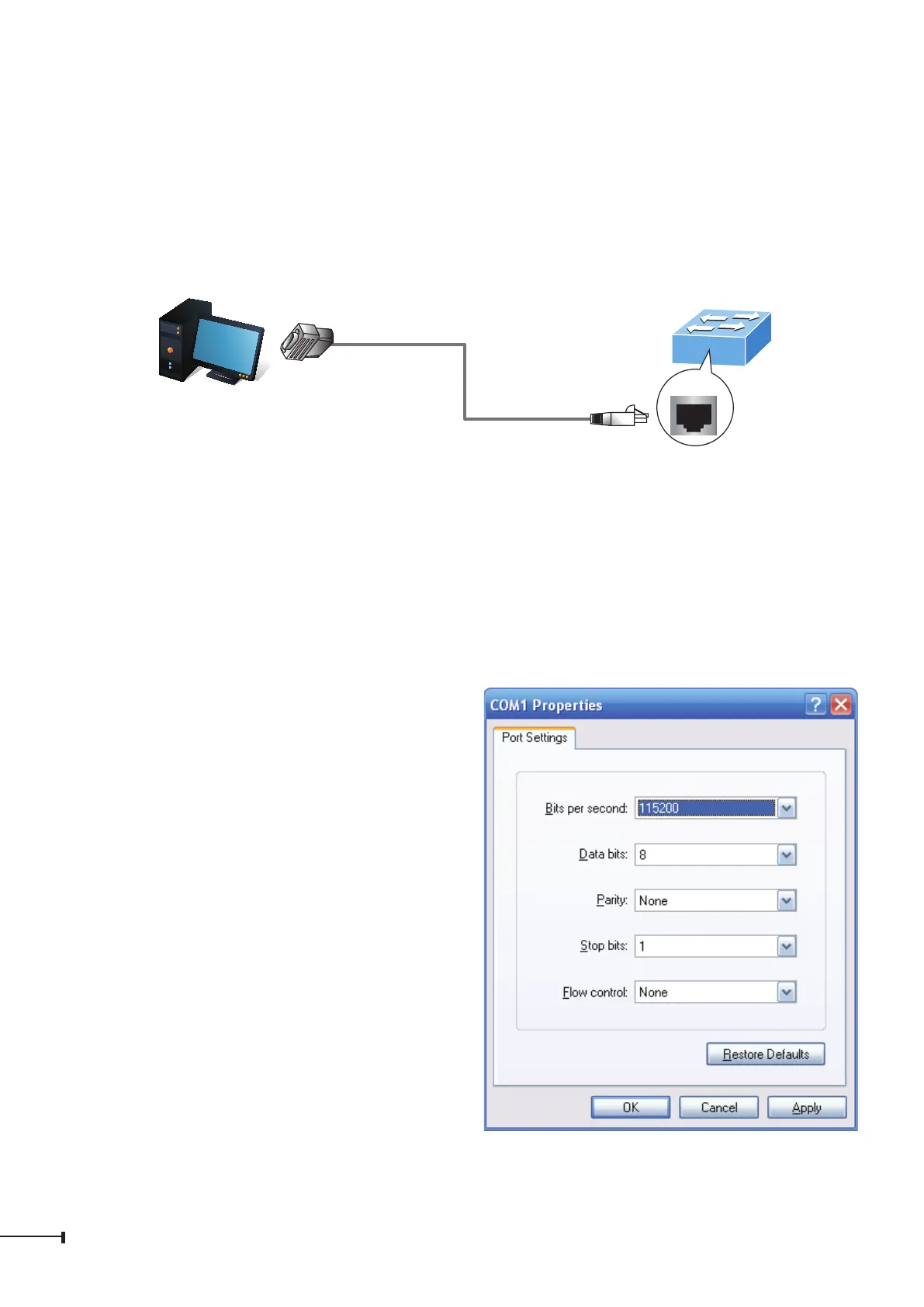

Figure 3-1: Managed Switch Console Connectivity

A terminal program is required to make the software connection to the Managed

Switch.

1. Run terminal program on the OS.

2. When the following screen appears, make sure that the COM port should be

conguredas:

Baud:115200

Databits:8

Parity:None

Stopbits:1

Flowcontrol:None

Figure 3-2: COM Port Conguration
