Quick Installation Guide
- 15 - PLANET Technology Corp.2024
5. Web Login
5.1 Starting Web Management
The following shows how to start up the Web Management of the
Wall-mount Managed Switch. Note the Wall-mount Managed Switch is
configured through an Ethernet connection. Please make sure the
manager PC must be set to the same IP subnet address.
For example, the default IP address of the Wall-mount Managed Switch is
192.168.0.100, then the manager PC should be set to 192.168.0.x (where
x is a number between 1 and 254, except 100) and the default subnet
mask is 255.255.255.0.

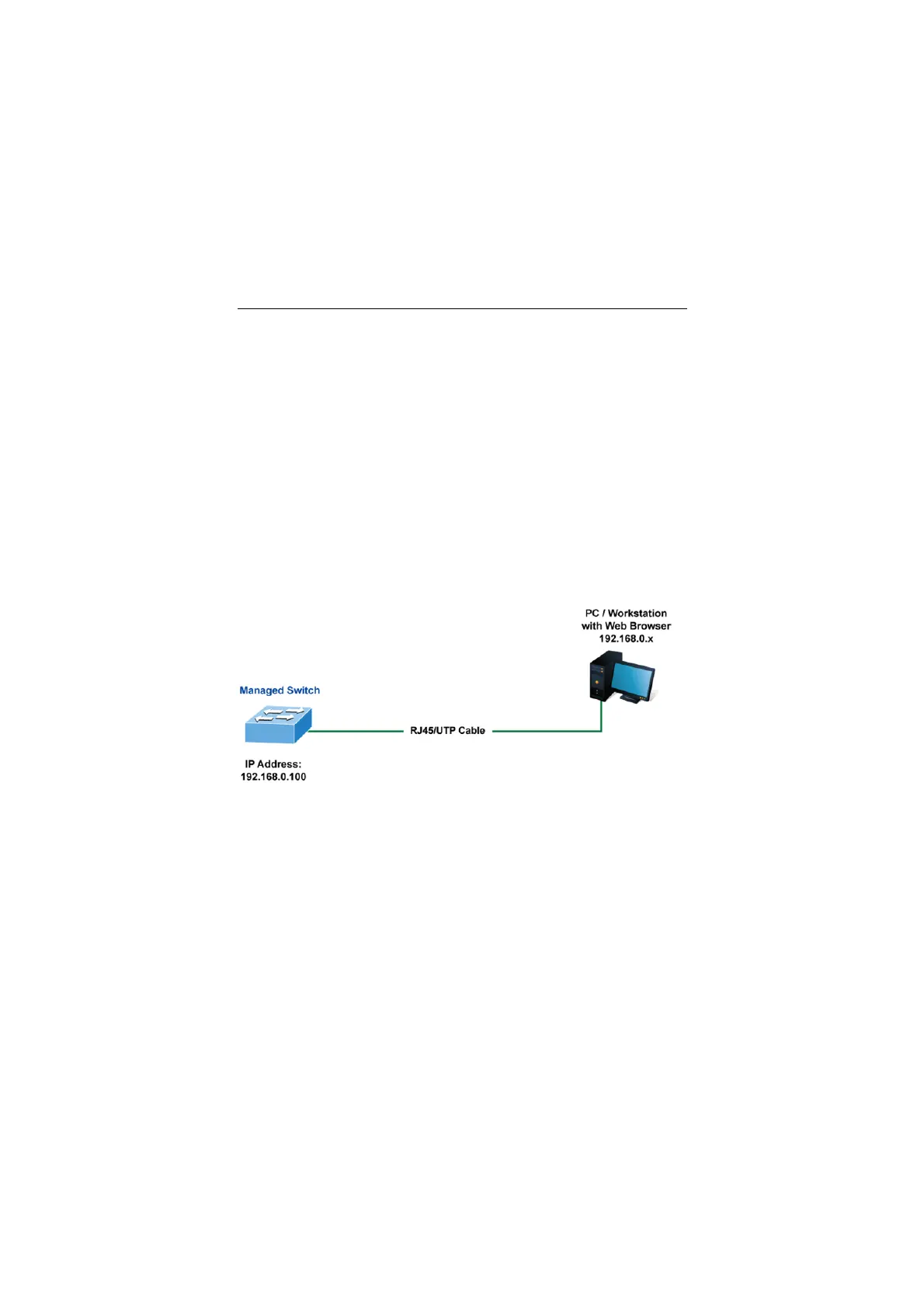

Figure 5-1: IP Management Diagram
To Next Page
