Planet WGSW-24040HP4 Quick Installation Guide

5
3. Terminal Setup
To congure the system, connect a serial cable to a COM port on a PC or notebook
computerandtoDB9typeofserialportoftheManagedSwitch.
Managed Switch
PC / Workstation
with
Terminal Emulation Software
Serial Port
RS232 to RJ45 Cable
Console Port
RJ45

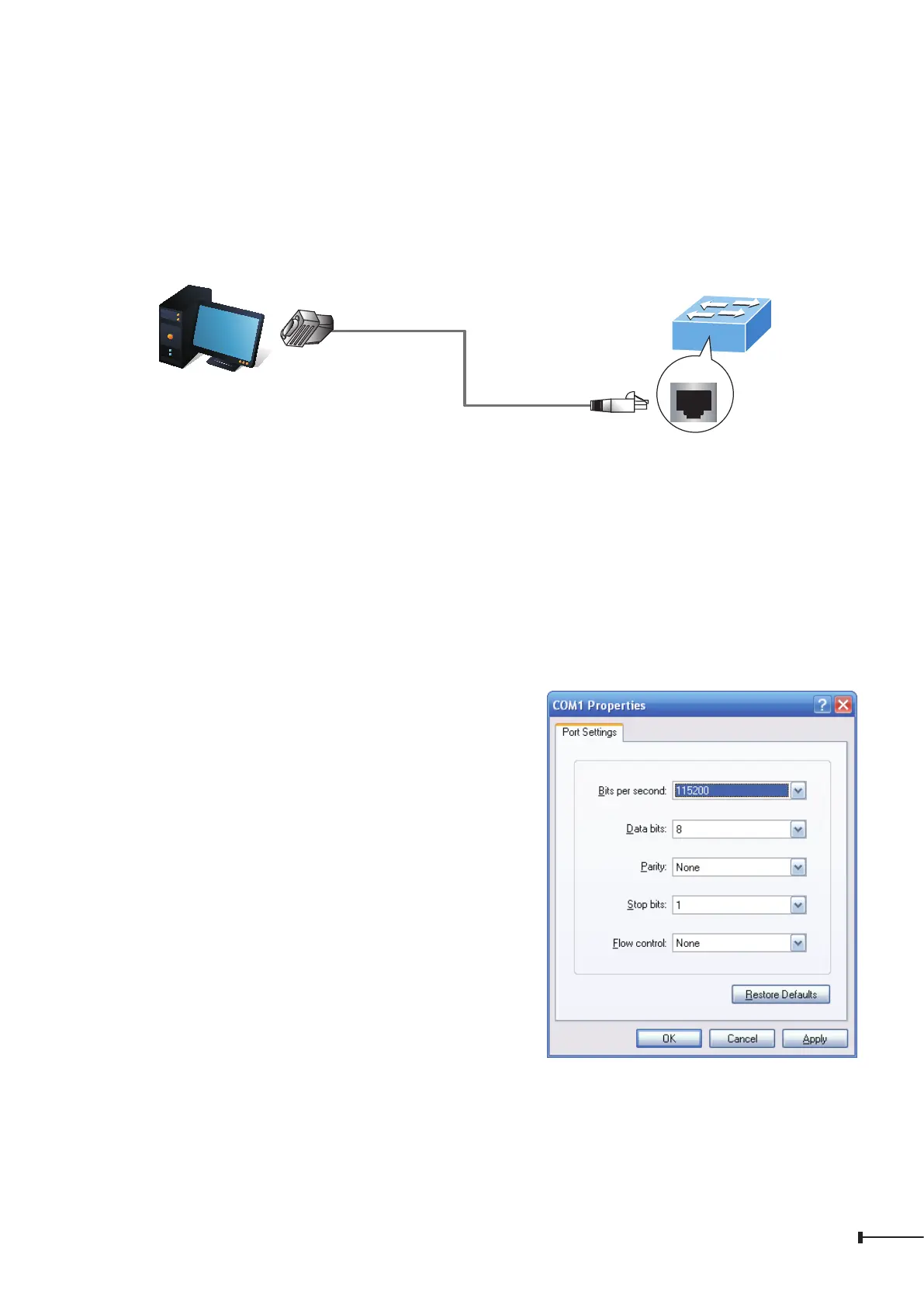

Figure 3-1: Managed Switch Console Connectivity
A terminal program, such as Tera Term or PuTTY, is required to make the software
connectiontotheManagedSwitch.
1. Run terminal program on the OS.
2. When the following screen appears, make sure that the COM port should be
conguredas:
z Baud:115200
z Databits:8
z Parity:None
z Stopbits:1
z Flowcontrol:None
Figure 3-2: COM Port Conguration
