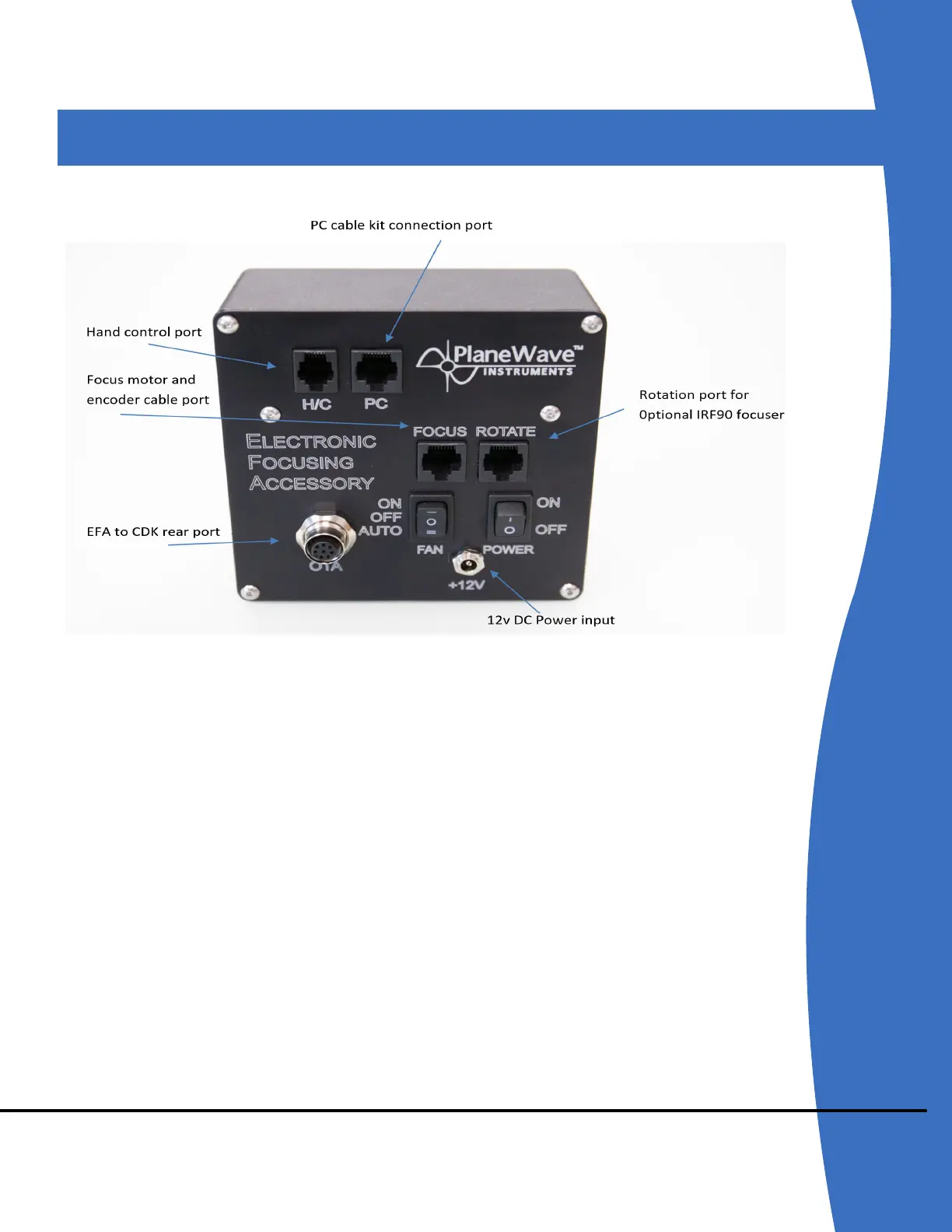

EFA Kit
Note that the 12VDC power is attached to the EFA control electronics rather than to the
rear of the telescope. Fan control and power are provided via the RJ12 6P6C modular
cable from the EFA port to the rear panel of the telescope depending on switch position
selection.
The cable (with the blue hoods) used to connect the Hedrick focuser and FOCUS port
diers from a standard CAT5 to minimize electrical noise. Please do not use a longer
standard CAT5 cable in place of this cable as operation may be erratic.
The 12VDC power input is center positive, 5.5mm x 2.1mm.
