PlayGoPools 2200 - Page 10

10

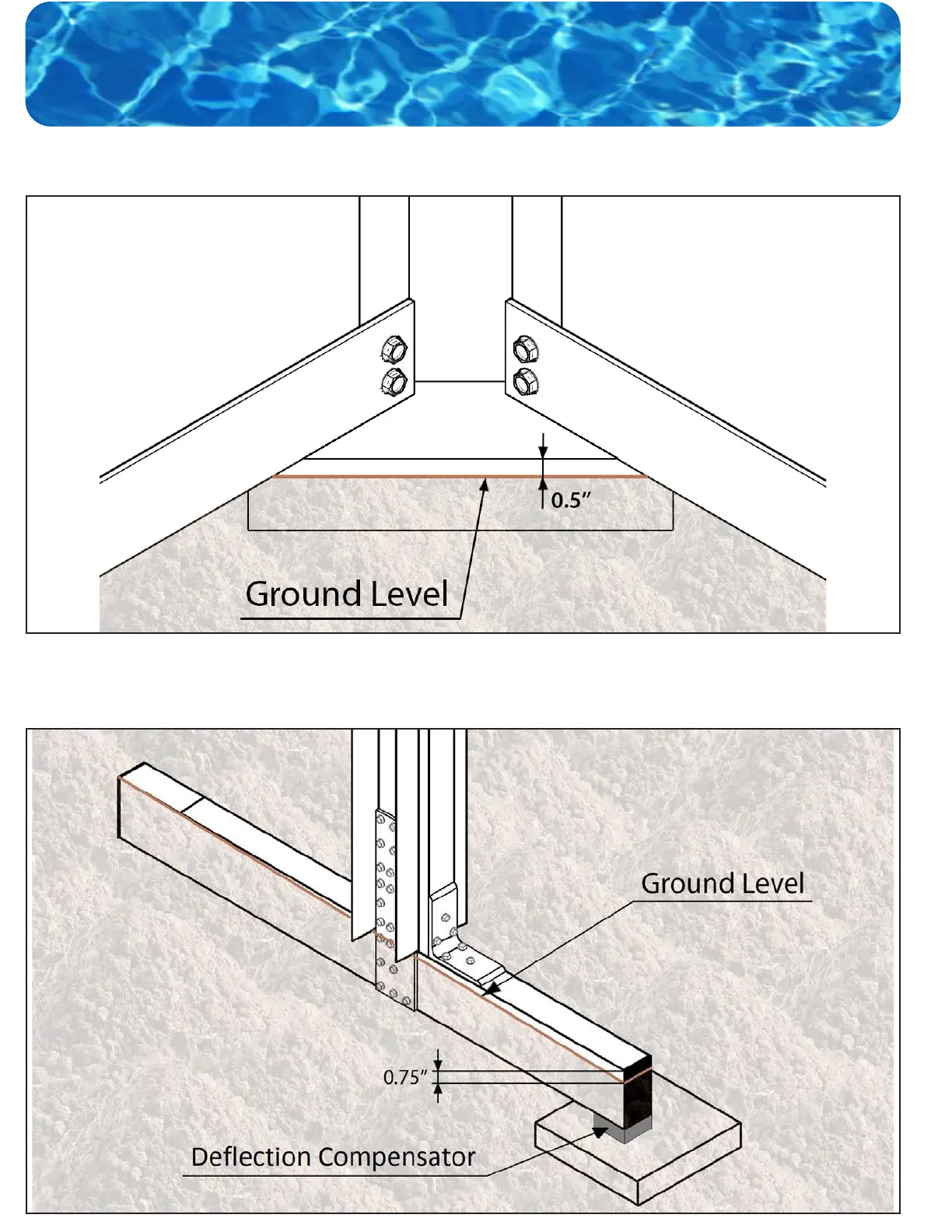

• Please see the Corner Section illustration below, showing the 0.5” elevation of the Patio Block above
the ground level.
• Please see the Buttress Assembly illustration below, showing the 0.75” elevation of the dry/outside
end of the Horizontal Buttress (above the ground level) raised by Deection Compensator provided
in the box with the hardware.
