Playworld Systems Unity XX0193 - Page 8

Installation Instructions
Models XX0193 and XX0193S
ECN2716
Page 8 of 14
3/8" x 1"
Button Head Bolt
BAE0664
(36 Total)
1" O.D. Flat Washer
BAE0600
(72 Total)
3/8" Lock Nut
BAE0620
(36 Total)

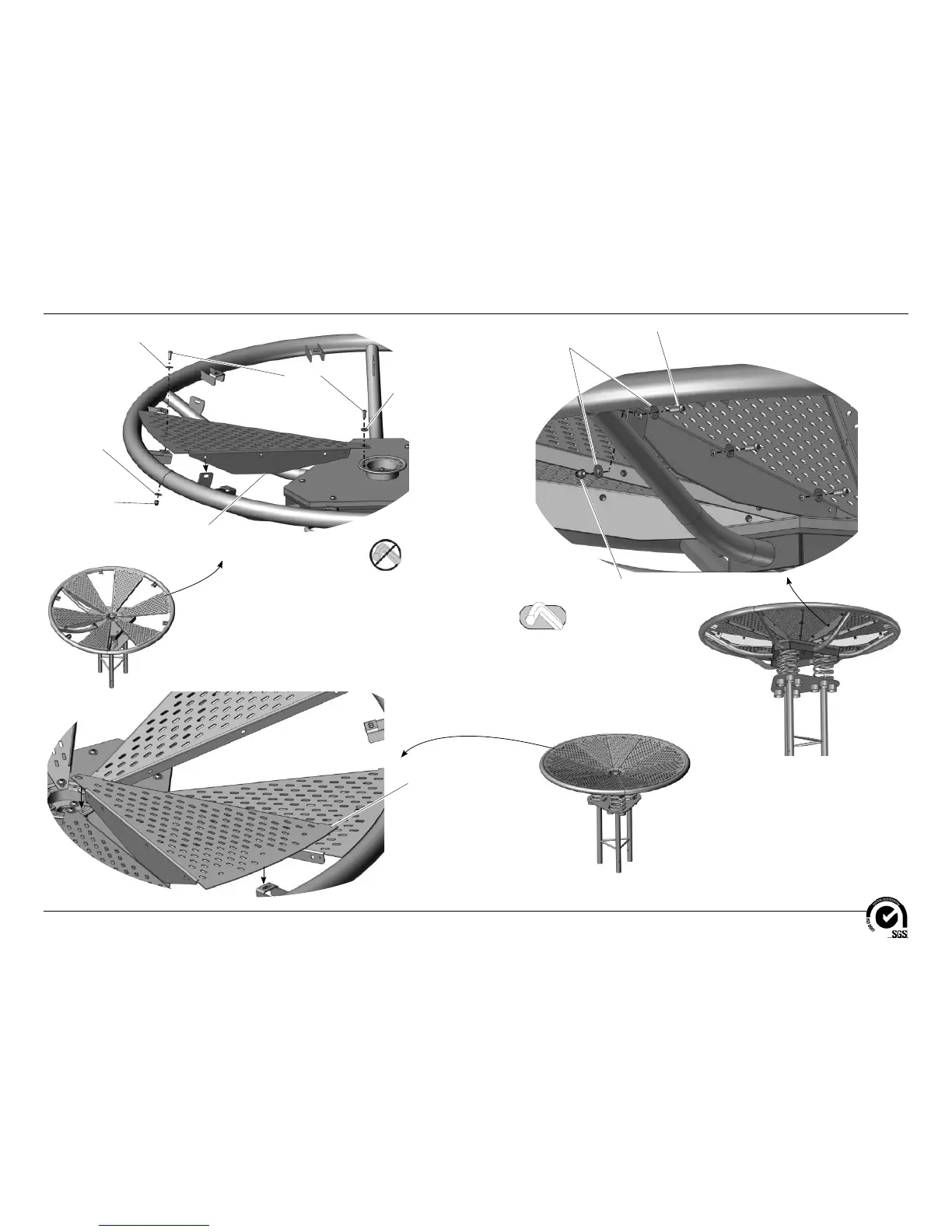

Detail F
Step 9
Attach the perf sheets together
1" O.D. Flat Washer
BAE0600
(6 Total)
3/8" Lock Nut
BAE0620
(6 Total)
3/8" x 1"
Button Head Bolt
BAE0664
(12 Total)
1" O.D. Flat Washer
BAE0600
(6 Total)
Right Perf Sheet
BPM0323
(6 Total)
Detail E-1
Step 8
Attach the Right Perf Sheets to
the frame on alternating tabs
Left Perf Sheet
BPM0322
(6 Total)
Detail E-2
Step 8
Place the Left Perf Sheets on the
frame on alternating tabs
1" O.D. Flat
Washer
BAE0600
(6 Total)
Note: An alignment pin may be
needed to line up holes before
securing the planks together
