Playworld Systems Unity XX0193 - Page 7

Installation Instructions
Models XX0193 and XX0193S
ECN2716
Page 7 of 14
Note: The frame is shown
transparent for ease of viewing
the connection.
3/8" Lock Nut
BAE0620
(6 Total)
1" O.D. Flat Washer
BAE0600
(12 Total)
3/8" x 1-3/4"
Button Head Bolt
BAE0665
(6 Total)
Plate
APL2268
(1 Total)
Sheet Plastic
BFC3625
(1 Total)
3/8" Lock Nut
BAE0620
(3 Total)
1" O.D. Flat Washer
BAE0600
(6 Total)
Hub Casting
AAU0843
(1 Total)

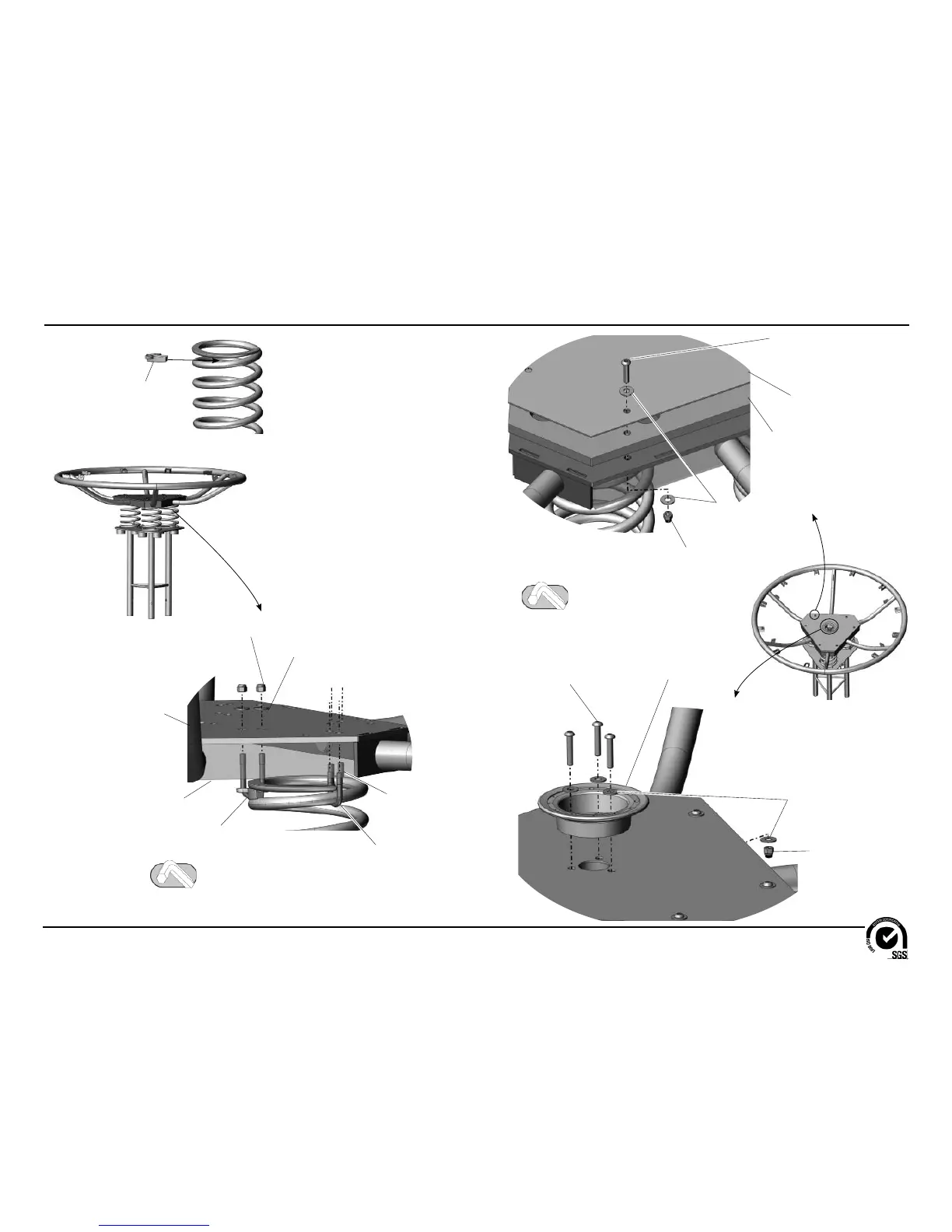

Detail C
Step 6
Attach the sheet plastic and plate
to the frame
Detail D
Step 7
Attach the hub casting to the
assembly
3/8" x 2-1/4"
Button Head Bolt
BAE06675
(3 Total)
Spring Wedge Casting
AAU0062
(3 Total)
Detail B-1
Step 5
Insert the spring wedge into the
top of the spring until secure
Detail B-2
Step 5
Attach the springs to the Unity
Rocker frame
3/8" Hex Nut
w/ Locking Ring
BAE0621
(18 Total)
1" O.D. Flat Washer
BAE0600
(18 Total)
3/8" x 3.25" U-Bolt
BAE1798
(3 Total)
3/8" x 2.50" U-Bolt
BAE0029
(3 Total)
3/8" x 1.75" U-Bolt
BAE0036
(3 Total)
Unity Rocker Frame
AFR1702
(1 Total)
Note: The frame is shown
transparent for ease of viewing
the connection.
