Playworld Systems Unity XX0193 - Page 6

Installation Instructions
Models XX0193 and XX0193S
ECN2716
Page 6 of 14
Follow the details in alphabetical order. For clarifi cation, each detail references the
step description. The step descriptions start on page 10.

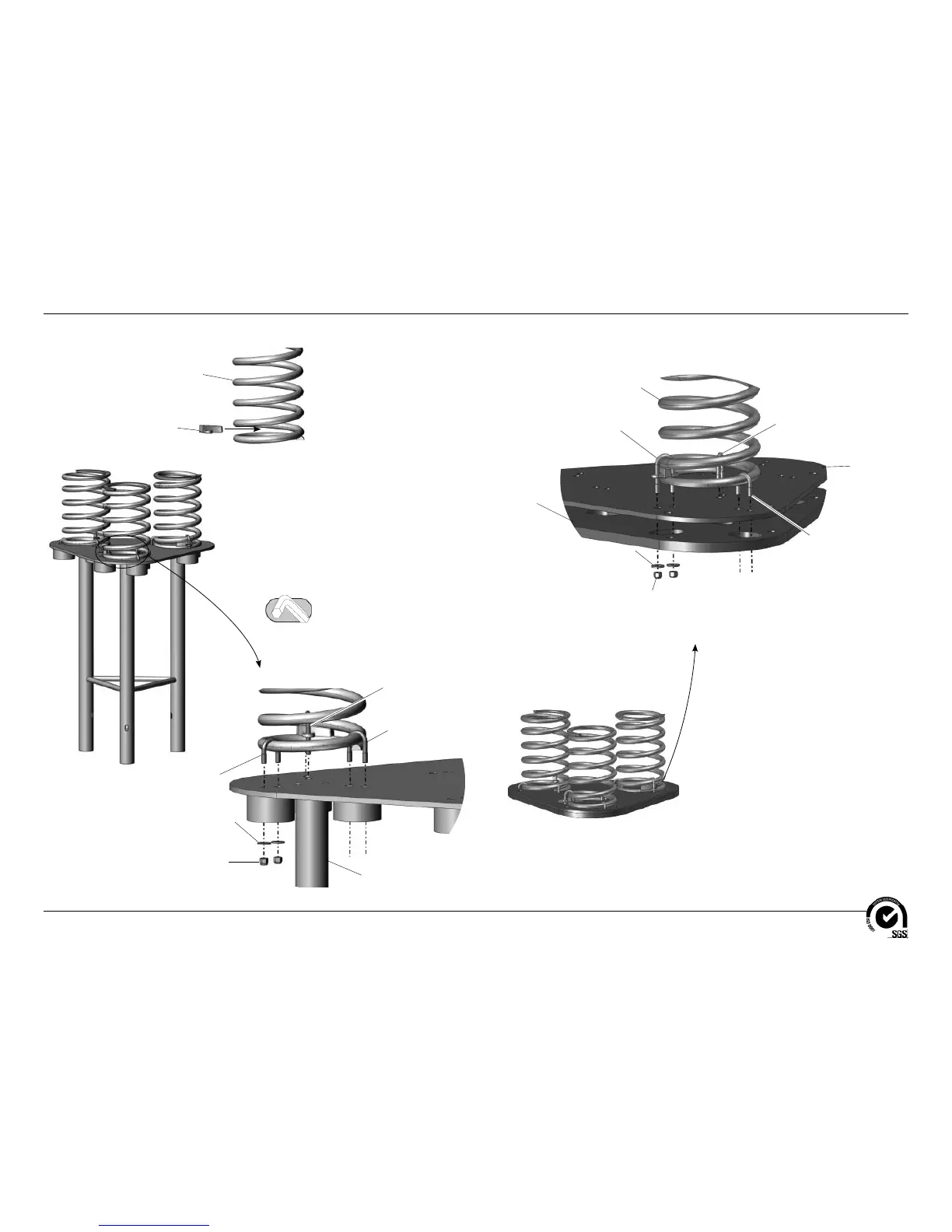

Detail A-1
Step 4
Insert the spring wedge into the
bottom of the spring until secure
Detail A-2
Step 4
(In-Ground Model Only)
Attach the springs to the anchor
frame
Spring Wedge Casting
AAU0062
(3 Total)
Spring
ATM0093
(3 Total)
3/8" Hex Nut
w/ Locking Ring
BAE0621
(18 Total)
1" O.D. Flat Washer
BAE0600
(18 Total)
Anchor Frame
AFR1701
(1 Total)
3/8" x 3.25" U-Bolt
BAE1798
(3 Total)
3/8" x 2.50" U-Bolt
BAE0029
(3 Total)
3/8" x 1.75" U-Bolt
BAE0036
(3 Total)
1" O.D. Flat Washer
BAE0600
(18 Total)
3/8" Hex Nut
w/ Locking Ring
BAE0621
(2 Total)
3/8" x 3.25" U-Bolt
BAE1798
(3 Total)
Spring
ATM0093
(3 Total)
3/8" x 2.50" U-Bolt
BAE0029
(3 Total)
3/8" x 1.75" U-Bolt
BAE0036
(3 Total)
Anchor Plate
APL2238
(1 Total)
Sheet Plastic
BFC3624
(1 Total)
Detail A-3
Step 4
(Surface Mount Models Only)
Attach the springs to the base plate
Note: The side of the anchor
plate with "TOP" on it should be
facing up.
