System Architecture

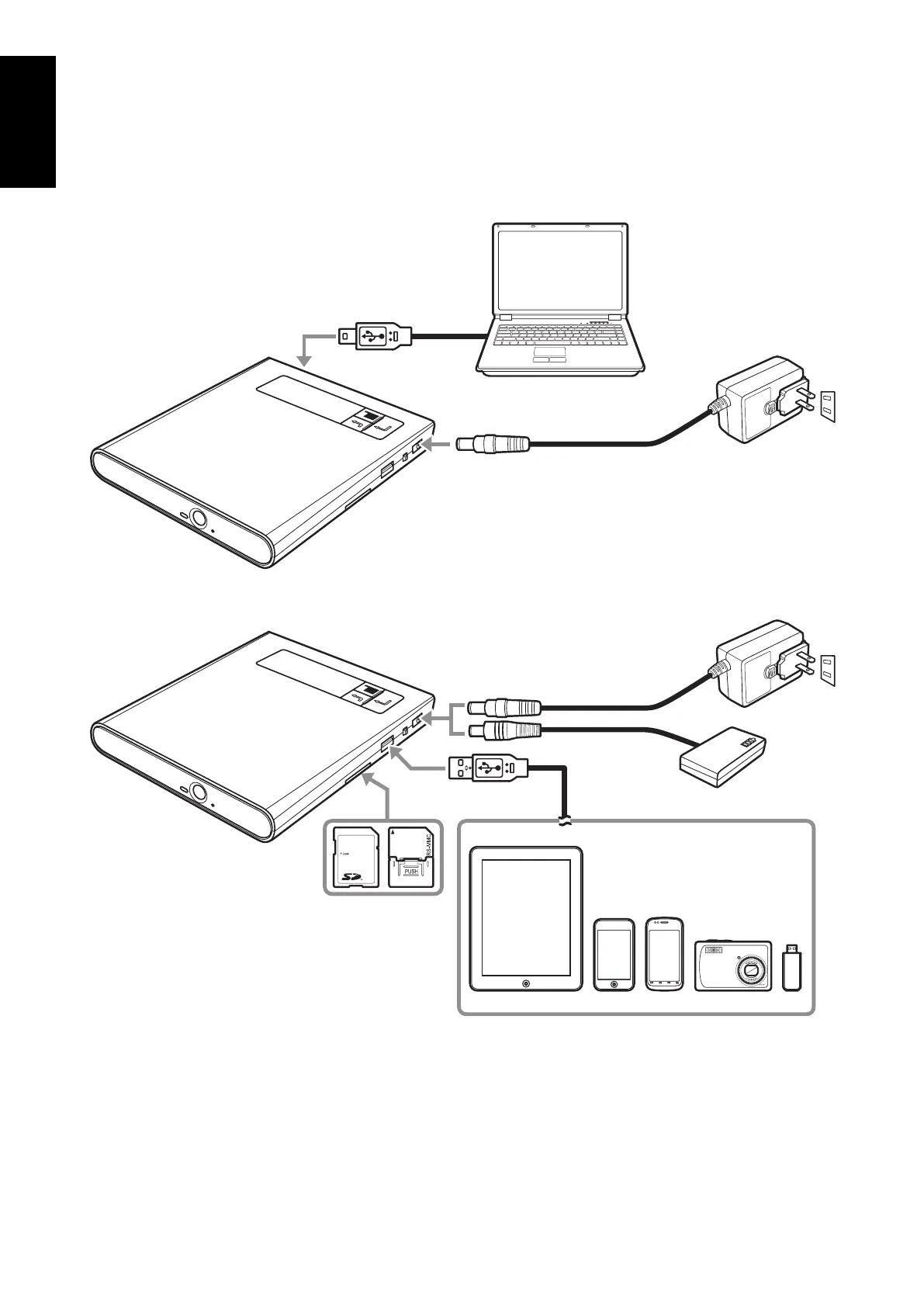

The illustration below is an example of the drive connections with related devices.
Notebook
USB devices (including Tablet PC, mobile
phones, digital cameras, USB drive, etc)
Memory cards
(SD/MMC)
Note:
For details on supported USB devices or memory cards, refer to • “Supported Source” on page 28.
If
• you want to use an external DC power source, please use 5V/2A UL listed external DC power source
with L.P.S.
Once power source cannot sustain the power during the burning process, the burning task will fail
•
and so will the disc.
Drive
External 5V/2A DC
power source
Electrical
outlet
Drive
External ODD Operation Mode
Stand-alone Operation Mode
Electrical
outlet
(optional)
