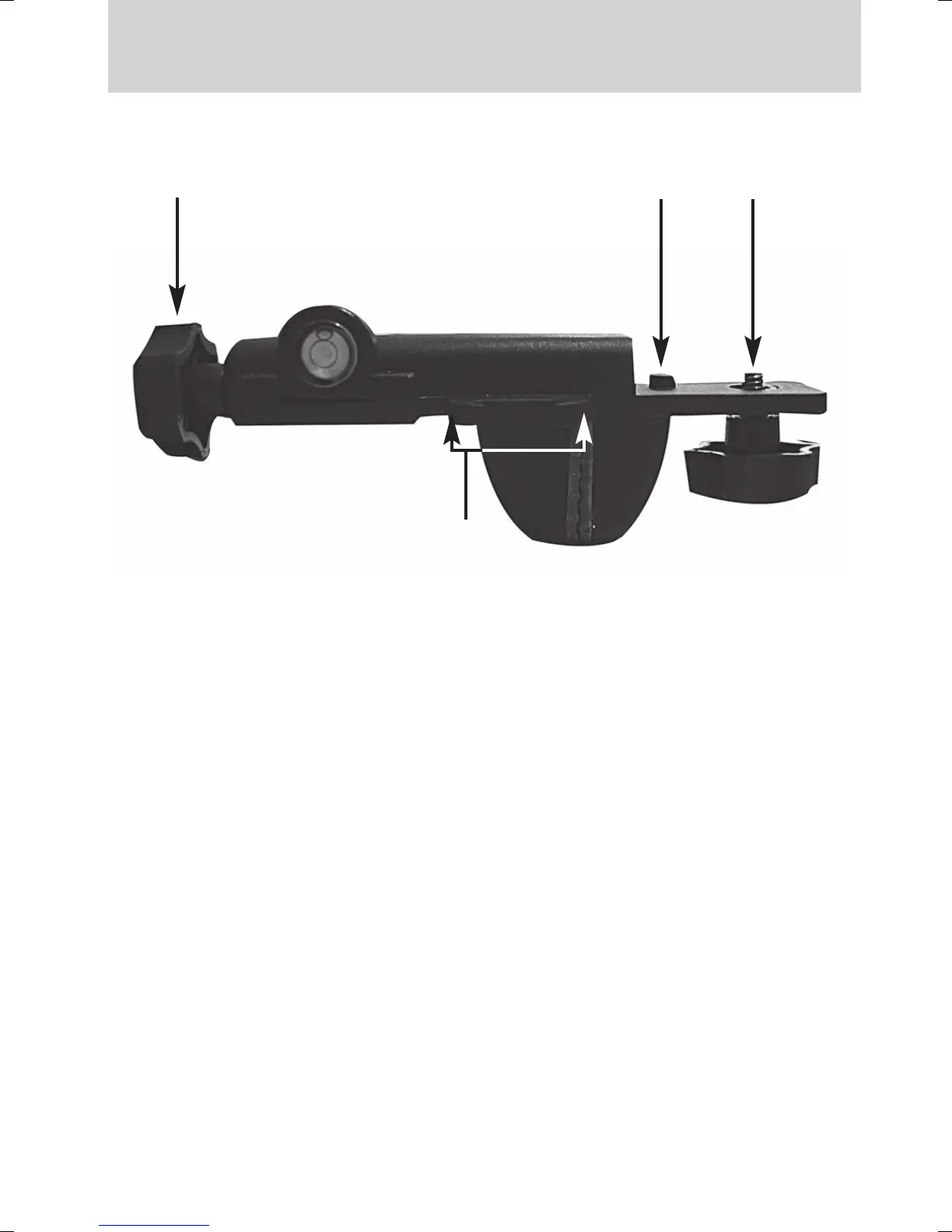

ROD CLAMP
1. Captive Rod Clamp Screw- attaches to the back
of detector.
2. Alignment Point - secures and aligns rod clamp to
detector in either horizontal or vertical position.
3. Reference Indicator - points are aligned with the detector
on-grade for grade rod readings.
4. Clamp S crew Knob - secures clamp to rods and staffs
by moving the traveling jaw.
1
2
4
3
