4 Learning about the „plusoptiX A16“and connecting it

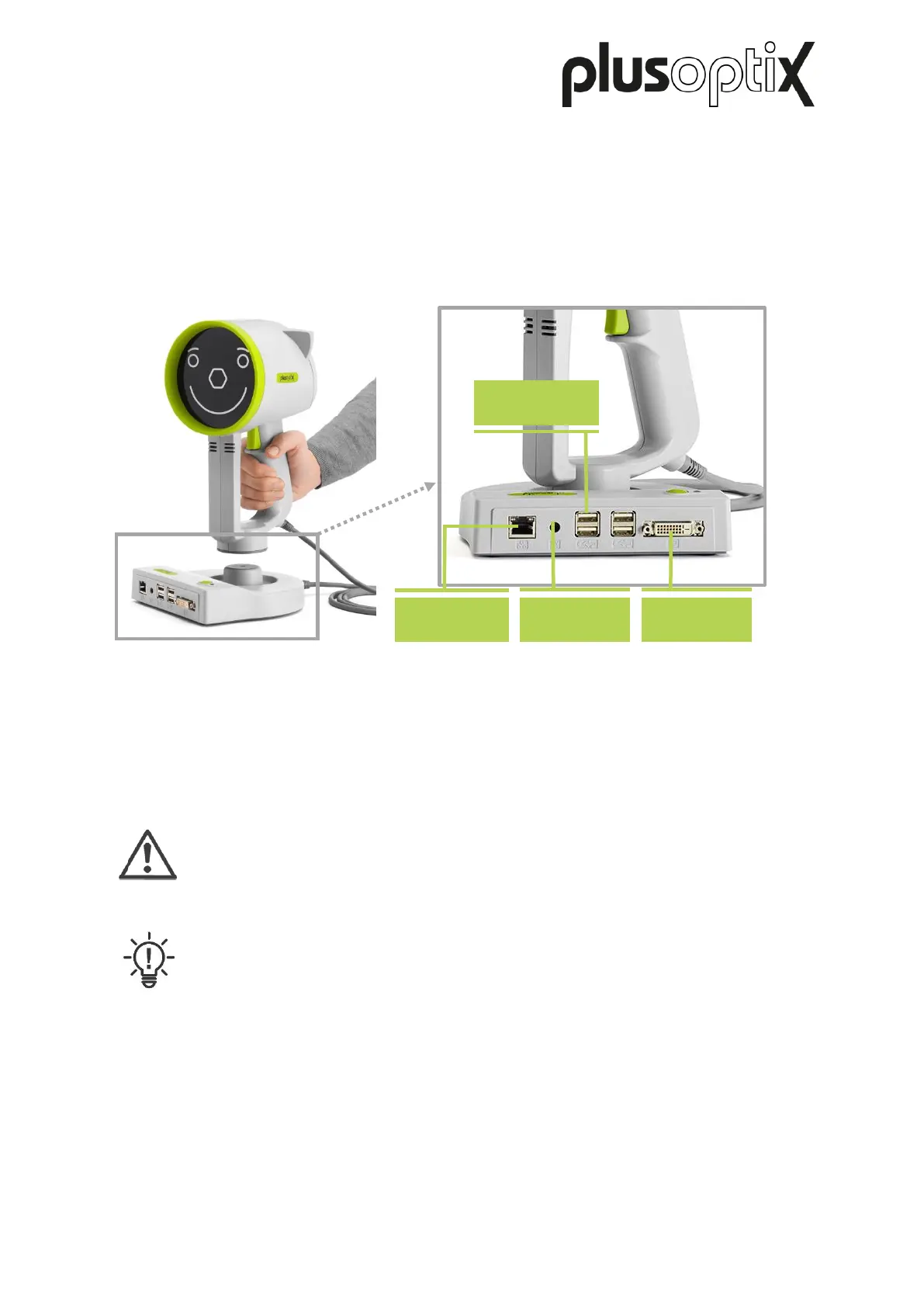

The “plusoptiX A16” is made up of the device with a smiley, which is connected to the cradle
with the device cable. Der „plusoptiX A16“ besteht aus dem Messkopf mit einem Smiley, der
über das Messkopfkabel mit der Auflage verbunden ist.
During a measurement, the “plusoptiX A16” records a series of images. To ensure children
look into the camera during the measurement, the “plusoptiX A16” plays a warble sound.
The speaker, the camera lens and the LEDS needed to light the images are located behind
the black protective screen with the smiley. This smiley helps to keep the child’s attention.
Attention:
If a child does not look at the nose of the smiley face during the measurement,
this can lead to a an aborted measurement. The patient's nose and knees must
always be aligned with the device.
Note:
To prevent the protective shield from becoming dirty, we recommend that you do
not touch it. If the protective shield does become dirty, please follow the cleaning
instructions in your user manual.
There is a 4.3” screen (resistive touchscreen) on the back of the “plusoptiX A16”. To access
a function displayed on the screen, simply tap the screen with your fingernail. The screen
and contact sensor are protected behind a thin plastic cover.
