Wiring Instructions

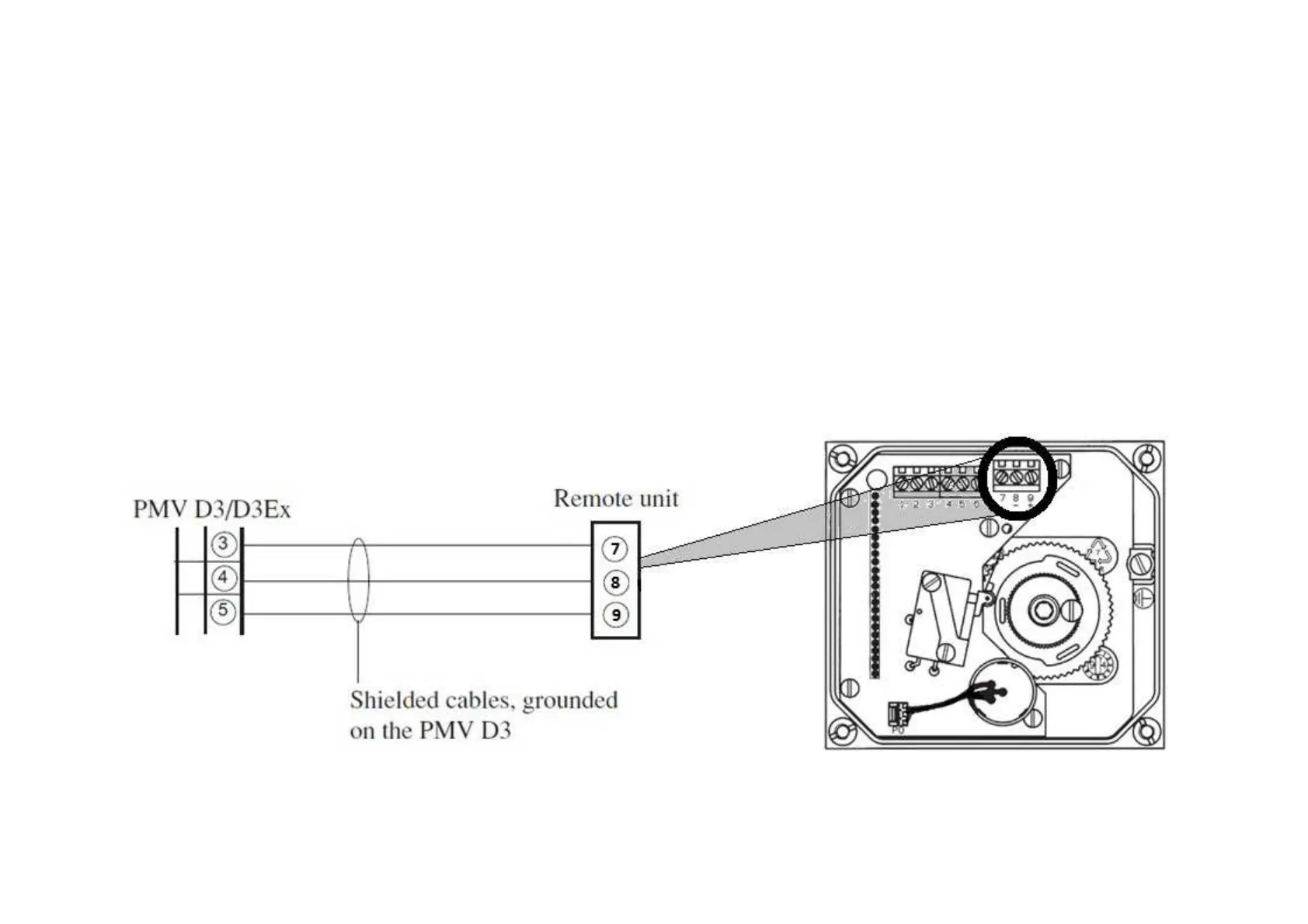

The remote unit shall be connected between terminals 3, 4 and 5 in the PMV D3
and 7, 8 and 9 in the remote feedback unit. Use a shielded cable and ground it in
the PMV D3 only. Max recommended distance between PMV D3 and the
remote feedback unit: 5 m (16.4 ft).
NOTE: If D3 will be further than 5 m from the valve then you might need to
increase the air tubing to 3/8” I.D.
