English 8 User manual
1. Electromagnetic lock
2. Master monitor
3. Slave monitor
4. The next Slave monitor
5. Outdoor unit
6. Outdoor unit
7. Electromagnetic lock
8. Electromagnetic lock
The wires
A. Red - Alarm
B. Blue - GND
C. Yellow - V+
D. White - Video
E. Red - Video
F. Blue - Data
G. Yellow - GND
H. White - Audio
I. Red - Audio
J. Blue - GND
K. Yellow - V+
L. White - Video
Important Note:
PNI DF780 includes a single monitor and a single outdoor unit (camera). The
CCTV cameras, locks and alarms or sensors are not included.
The video door phone supports the connection of 720P, 480TVL and CVBS
surveillance cameras.

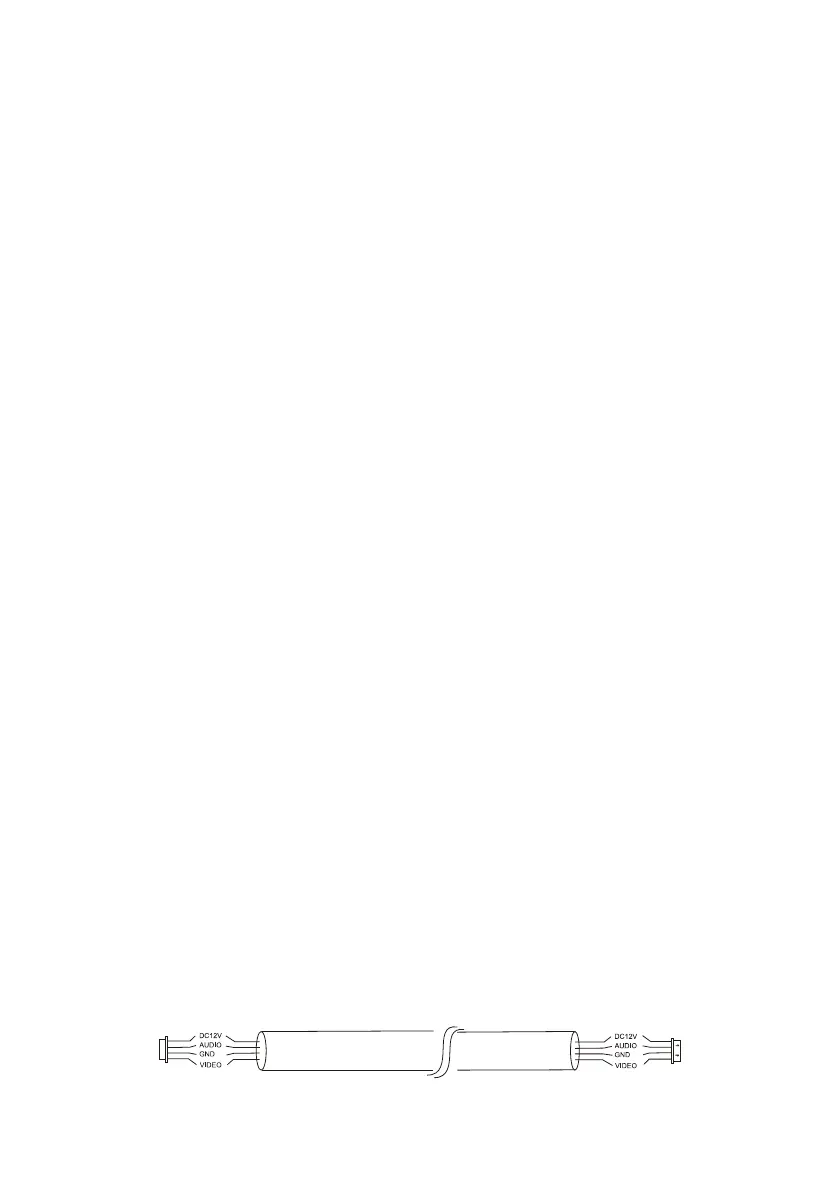

Recommended cable types
To connect external devices, use the cable types recommended below. The
quality of the cable influences the video and voice transfer distance.
1. Standard 4C insulated and non-insulated cable:
Distance ≤ 30m (RVV4*0.5mm2) Distance ≤ 50m (RVV4*0.75mm2)
Distance ≤ 70m (RVV4*1.0mm2) Distance ≤ 1000m (RVV4*1.5mm2)
2. Uninsulated network cable category 5 (not recommended).
