GB

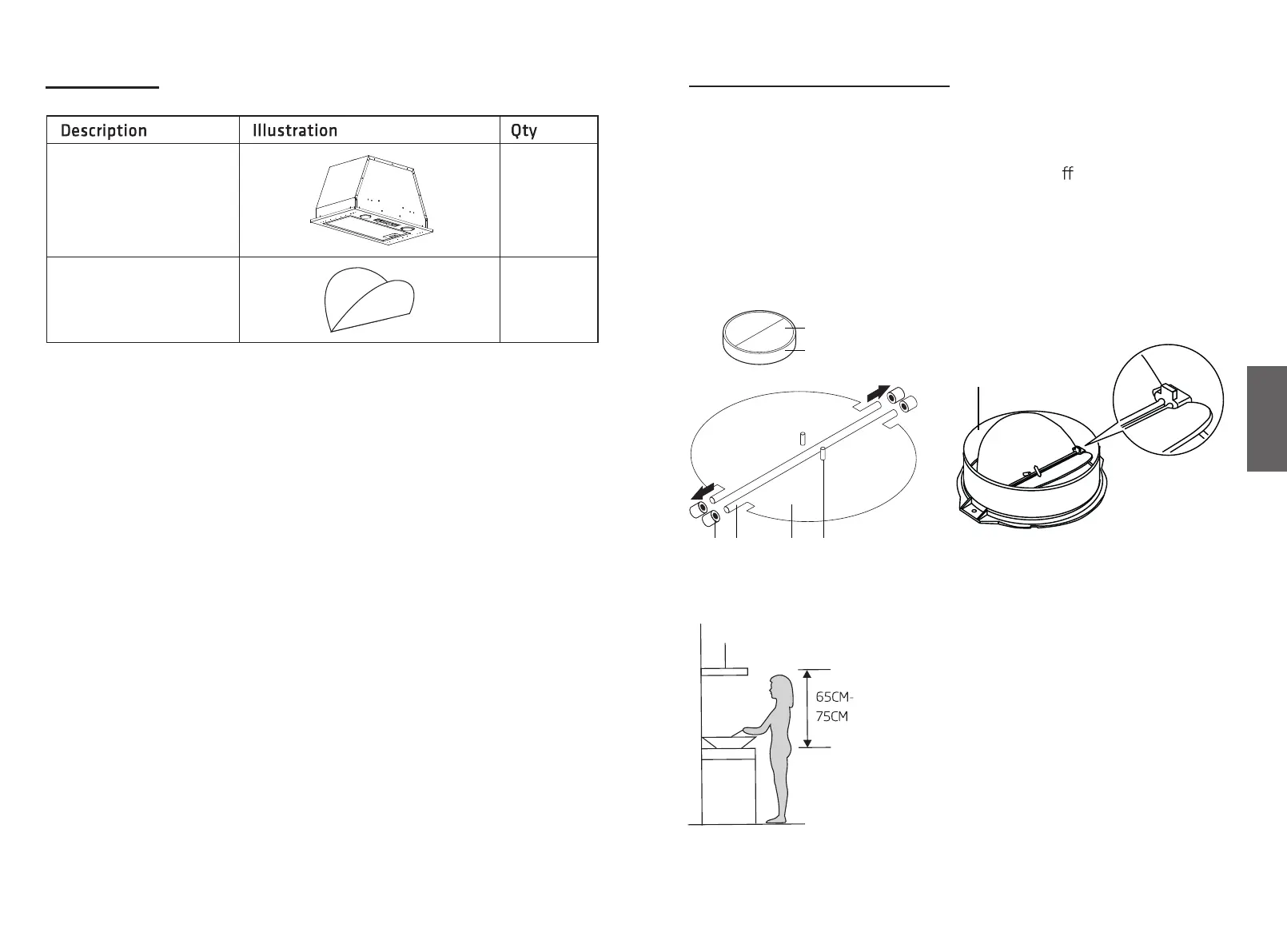

Parts supplied
If the cooker hood does not have an assembled V-flap 1, you should mount the
half-parts to its body. The images only show an example of how to mount
the V-flap, because the outlet may vary according to di
erent models and
configurations.
To mount the V-flap 1 you should:
• Mount two half-parts 2 into the body 6
• the pin 3 should be top oriented;
• the axis 4 should be inserted into the holes 5 on the body;
• repeat all the operations for the 2nd half-part.
INSTALLATION
1. Decide the location of the holes for fixing the cooker hood.
Cooker hood
V-flap
1
1
INSTALLATION (VENT OUTSIDE)
MOUNTING OF THE V-FLAP
①
①
⑥
④
②
③⑤
