THE PERFECT FIT
IQ Front Suspension Adjustments
Break in the suspension for approximately 150 miles (240 km) before
making any fine-tuning adjustments.
Settings will vary from rider to rider, depending on rider weight,
vehicle speed, riding style, and trail conditions. We recommend
starting with factory settings and then customizing each adjustment
individually to suit rider preference. The m achine should be
methodically tested, one change at a time, under the same conditions
(trail and snow conditions, vehicle speed, riding position, etc.) after
each adjustment until the best ride is achieved.
Independent Front Suspension (IFS)

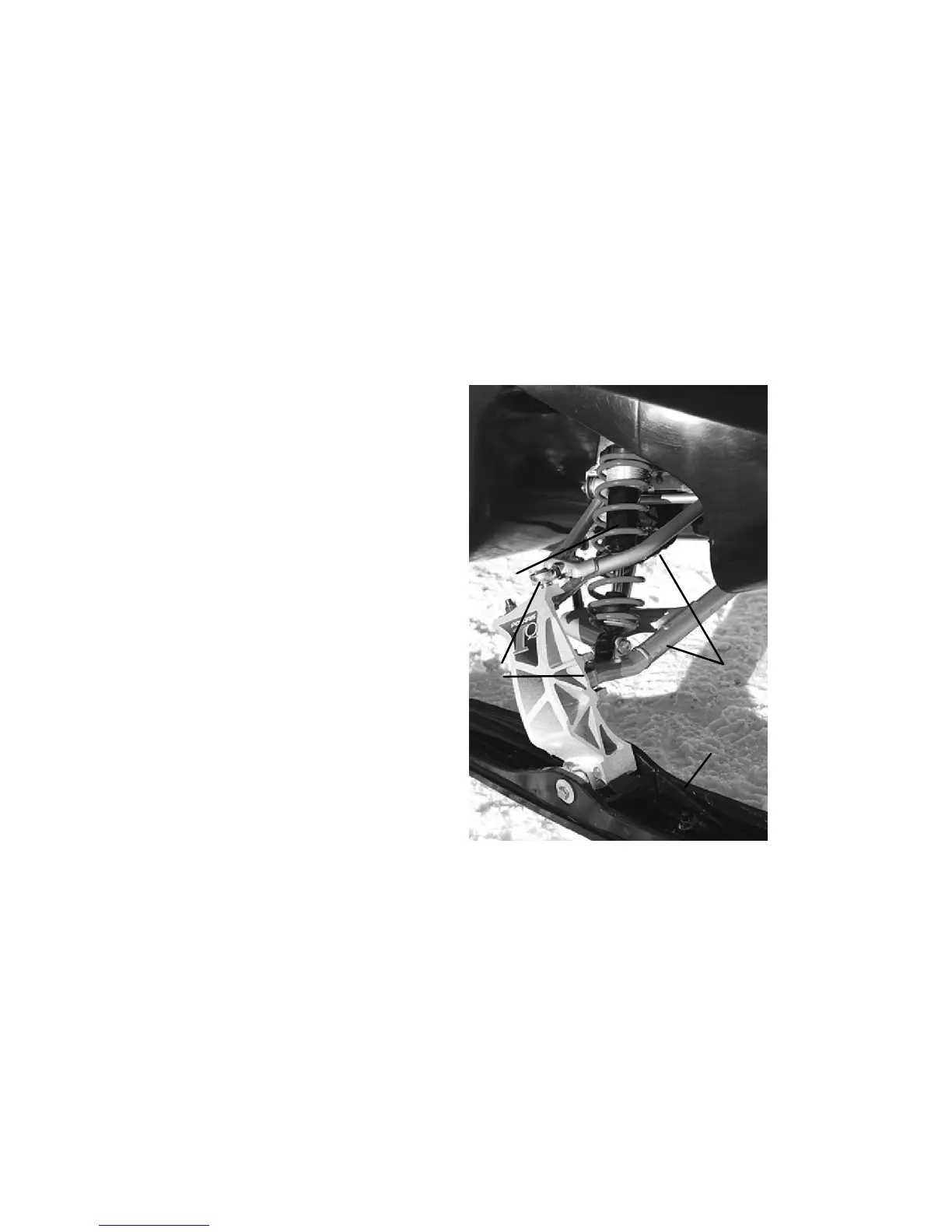

The IFS is made up of the
skis (1), front shocks and
springs (2), and the components
that connect these parts to both
the steering, such as the tie rods
(3), and to the machine itself,
such as the upper and lower
control arms (4). Front
suspension adjustments include
shocks, springs, toe, and camber.
IFS Components
1. Skis
2. F ront shocks and springs
3. Rod ends
4. A-arms
IFS Adjustment Options
S Compression damping
S Front shock spring preload (premium only)
S Optional springs
S Optional shock valving (premium only)
S Toe (ski alignment) (see page 103)
S Camber (see your dealer)
