9.24
9924871 R03 - 2014 Polaris Sportsman® 570 EFI Service Manual
© Copyright 2013 Polaris Sales Inc.

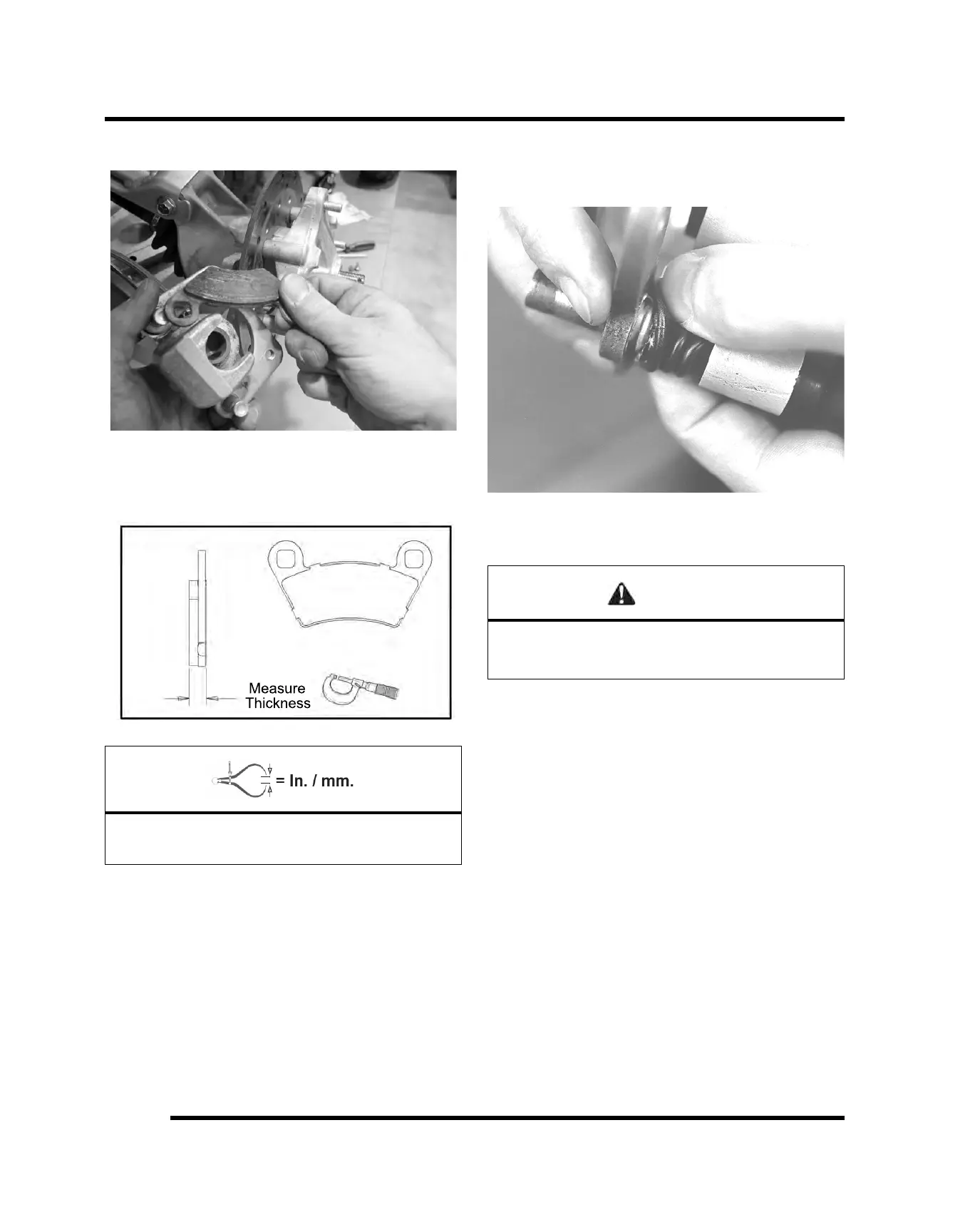

7. Remove the inner brake pad.
8. Clean the caliper with brake cleaner or alcohol.
9. Measure the thickness of the pad material. Replace
pads if worn beyond the service limit.
Rear Brake Pad Thickness
Service Limit: .180” (4.6 mm)
Touring Pad Installation
1. Lubricate mounting bracket pins with a light film of
disc brake caliper lube, and install rubber dust boots.
2. Compress mounting bracket and make sure dust
boots are fully seated. Install pads with friction
material facing each other.
WARNING
If brake pads are contaminated with grease,
oil, or liquid soaked do not use the pads.
Use only new clean pads.
BRAKES
