Handlebar Adjustment
Follow these steps to adjust handle-
bar angle at the handlebar block.

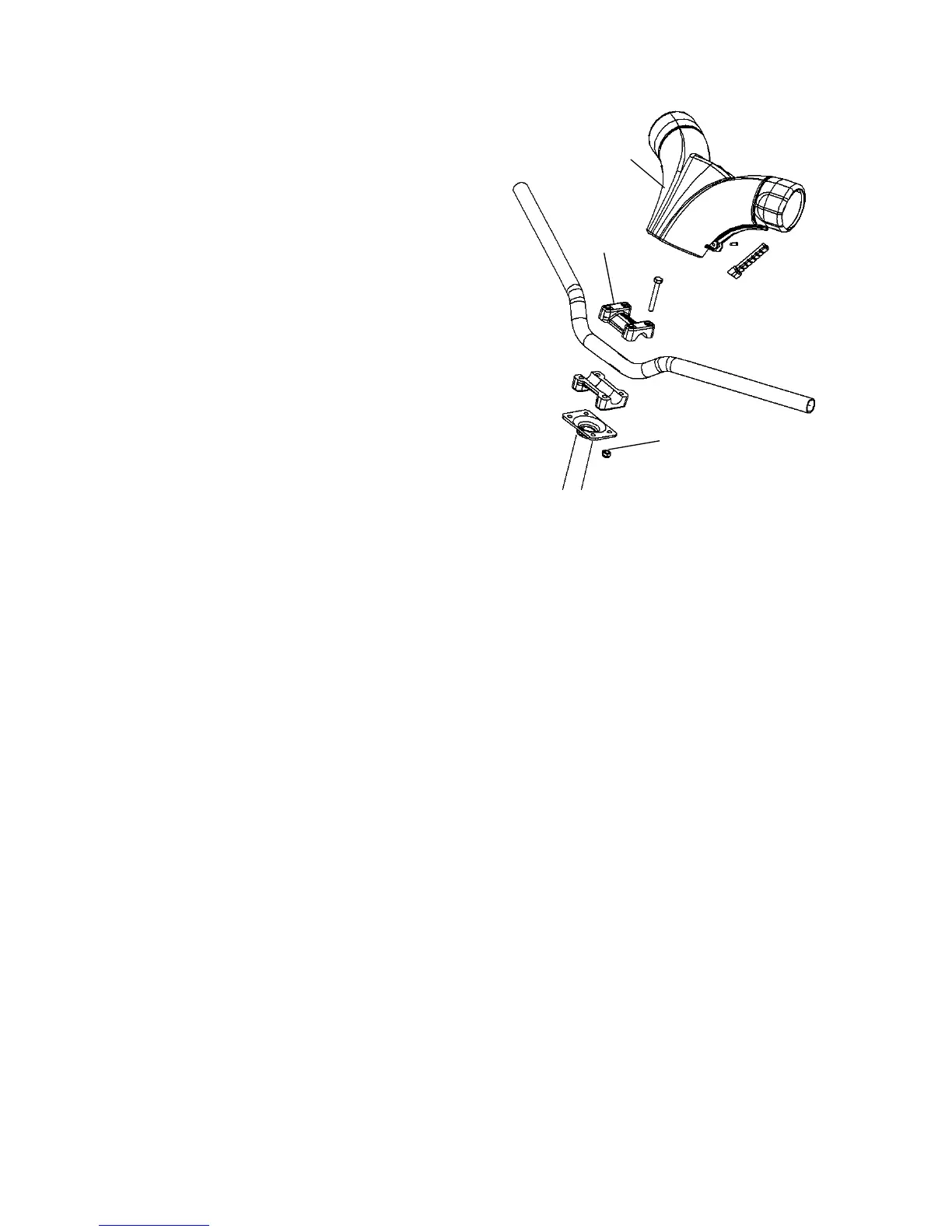

1. Remove the handlebar cover (1)
to expose the handlebar and the
four adjuster block bolts (2).
2. Using a 7/16I (11 mm) wrench,
loosen the four nuts (3) on the
bottom of the adjuster block
(turn handlebar to left or right
for access to back nuts).
NOTE: If necessary, pry the blocks
apart with a screwdriver.
3. Adjust the handlebar to the
desired height. Be sure handle-
bars, brake lever and throttle lever operate smoothly and do not hit
the fuel tank, windshield or any other part of the machine when
turned fully to the left or right.
4. Torque the front bolts first, then torque the rear bolts. Torque the
bolts to 11-13 ft. lbs. (15-18 Nm).
5. Reinstall the handlebar cover.
