Polaris 340 User Manual

15
10
12
15

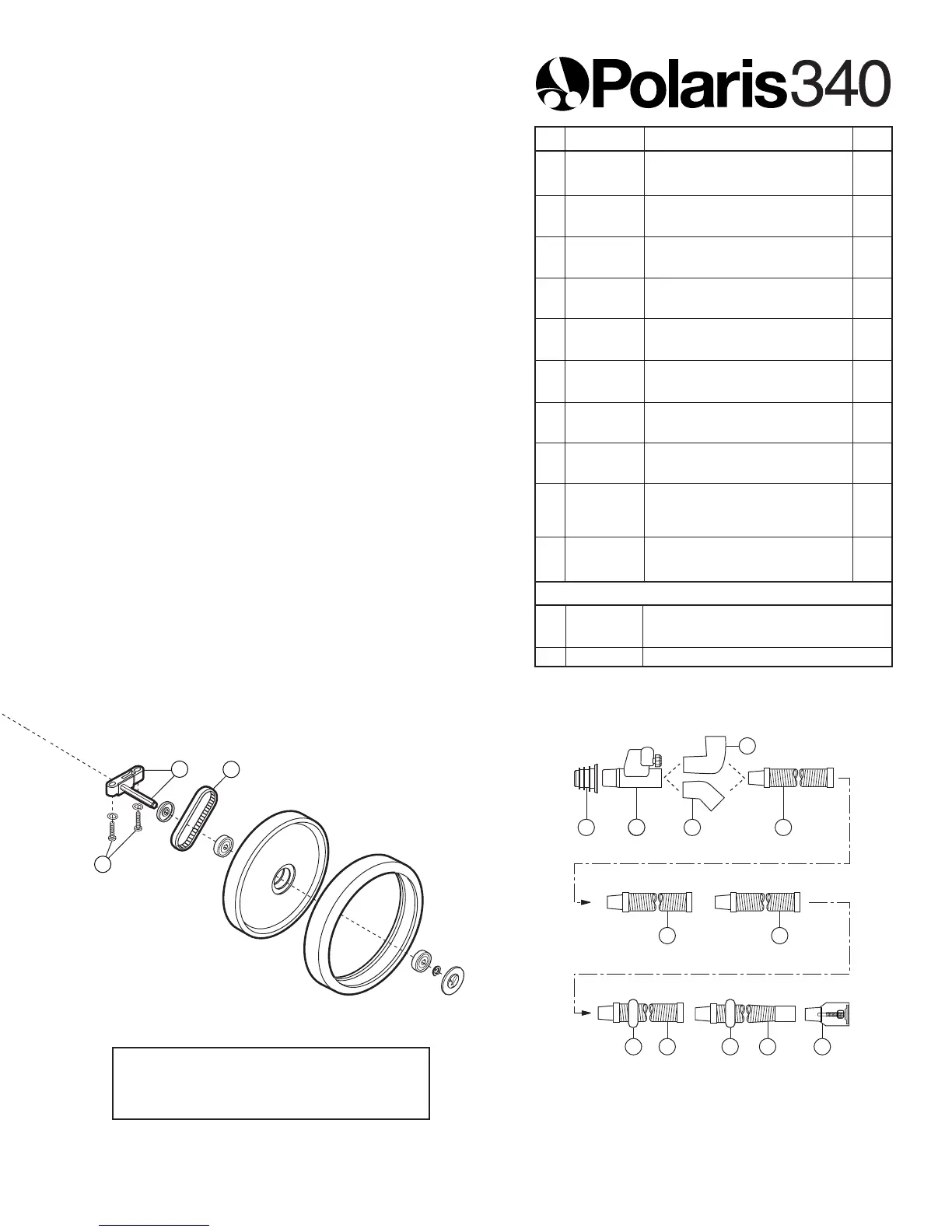

No. Part # Description Qty
1 5-2005 Propeller Grid 1
2 9-100-5117 Screw, 8-32 x 3/8" SS Pan Hd 12
3 5-2000 Top Housing Assembly 1
4 5-6000 Propeller 1
5 9-100-1114 Hub Cap 3
6 9-100-5107 E-clip, Stainless Steel 7
7 9-100-1108 Ball Bearing 6
8 5-4005 Tire, MaxTrax™, White 3
9 5-4000 Wheel Assembly 3
10 5-5200 Belt Kit, Small and Large 1
11 9-100-7011 Shield, Bearing 3
12 5-4500 Axle Block Assembly, 340 3
13 9-100-5130 Lock Washer, Axle Block 8
14 5-1010 Belt Tension Block 1
15 9-100-5115 Screw, 8-32 x 3/4" SS Pan Hd 8
16 5-1000 Frame, Exchange Only 1
17 5-2010 Flotation, Top, Front and Rear 1
18 5-5000 Power Module Assembly 1
19 5-5060 Swivel Assembly 1
20 5-2050 Bottom Housing, White 1
21 5-3000 Bottom Plate 1
22 5-7100 Universal Adapter 1
23 5-7000 Flow Regulator 1
24 5-7250 Elbow, 45-degree 1
25 5-7200 Elbow, 90-degree 1
26 5-5500 Suction Hose Kit (12 standard 1
Sections, 1 Leader Hose)
27 5-7300 Hose Weight 2
28 * Suction Hose, Leader (incl. in 1
part #5-5500)
29 5-7050 Flow Indicator 1
Parts Not Shown
5820 UniCover, White
5-4006 Tire, Kraton
®
5-5505 Bulk Leader Hose (14 sections)
5-5600 Bulk Standard Hose (28 sections, 39" each)
Pool Wall
or Skimmer
To T he
Polaris
292826
26 26
26
25
2422
27 27
23
To insure proper operation and long life for
the Polaris, be sure to insist on genuine
Polaris parts.
