41
THE PERFECT FIT
Handlebar Adjustments
Handlebar Angle

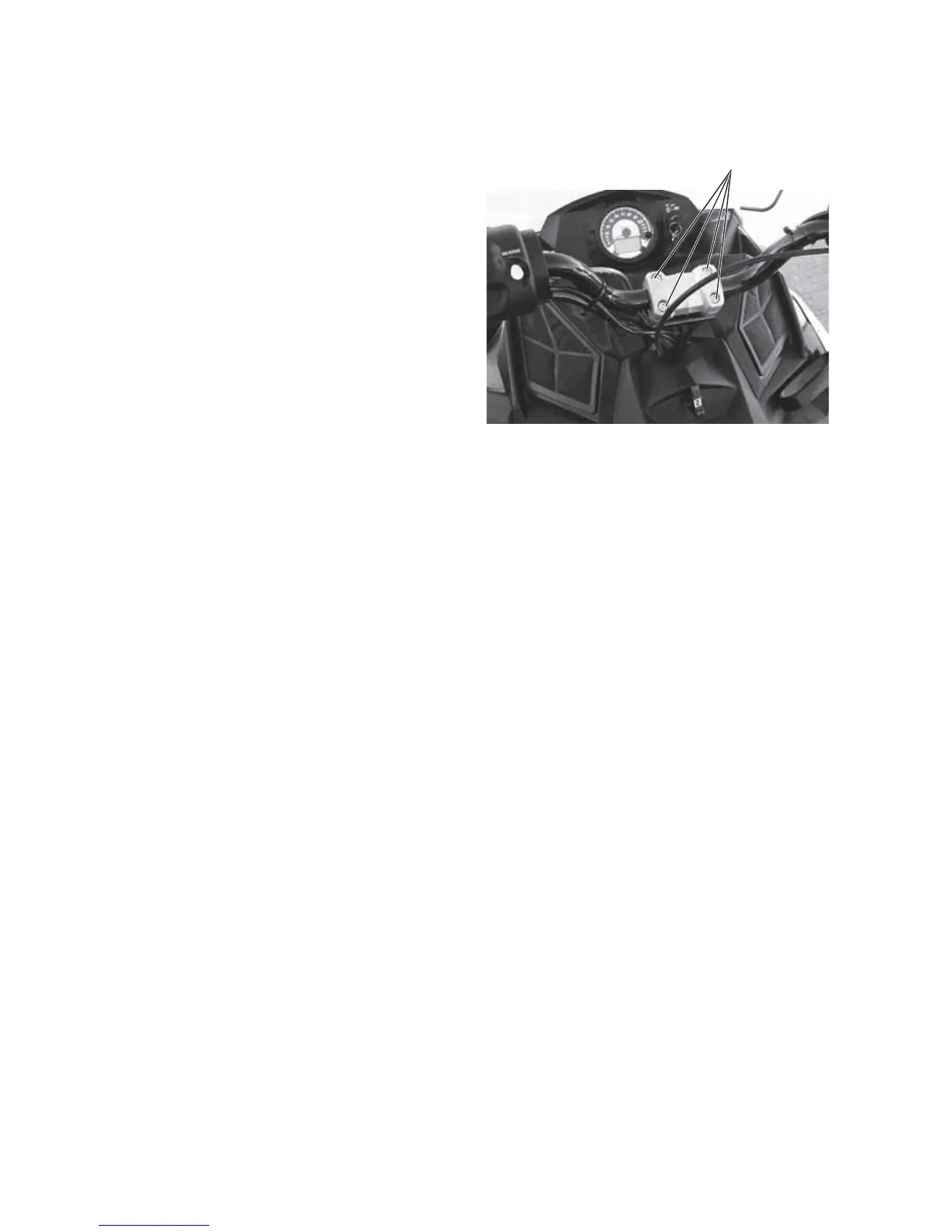

1. Loosen the four bolts on the
top of the adjuster block. If
necessary, pry the blocks
apart with a screwdriver.
2. Adjust the handlebar
forward or rearward to the
desired angle.
3. Be sure the handlebar, brake
lever and throttle lever
operate smoothly and do not
hit the gas tank, windshield
or any other part of the
machine when turned fully to the left or right. If necessary, loosen
the set screws for the left and right controls, rotate the controls
slightly, then tighten the set screws to the proper torque.
NOTICE: Do not stretch wires while adjusting the controls. Stretching the wires
could damage the handwarmers.
• Right control torque: 35 in. lbs. (4 Nm) +/- 10%.
• Left control torque: 24 in. lbs. (2.7 Nm) +/- 10%.
4. Tighten the bolts.
