6.9
Drive and Brake Systems
6
9923396 - 2007-2012 EDGE/Widetrak LX Service Manual
©2011 Polaris Sales Inc.

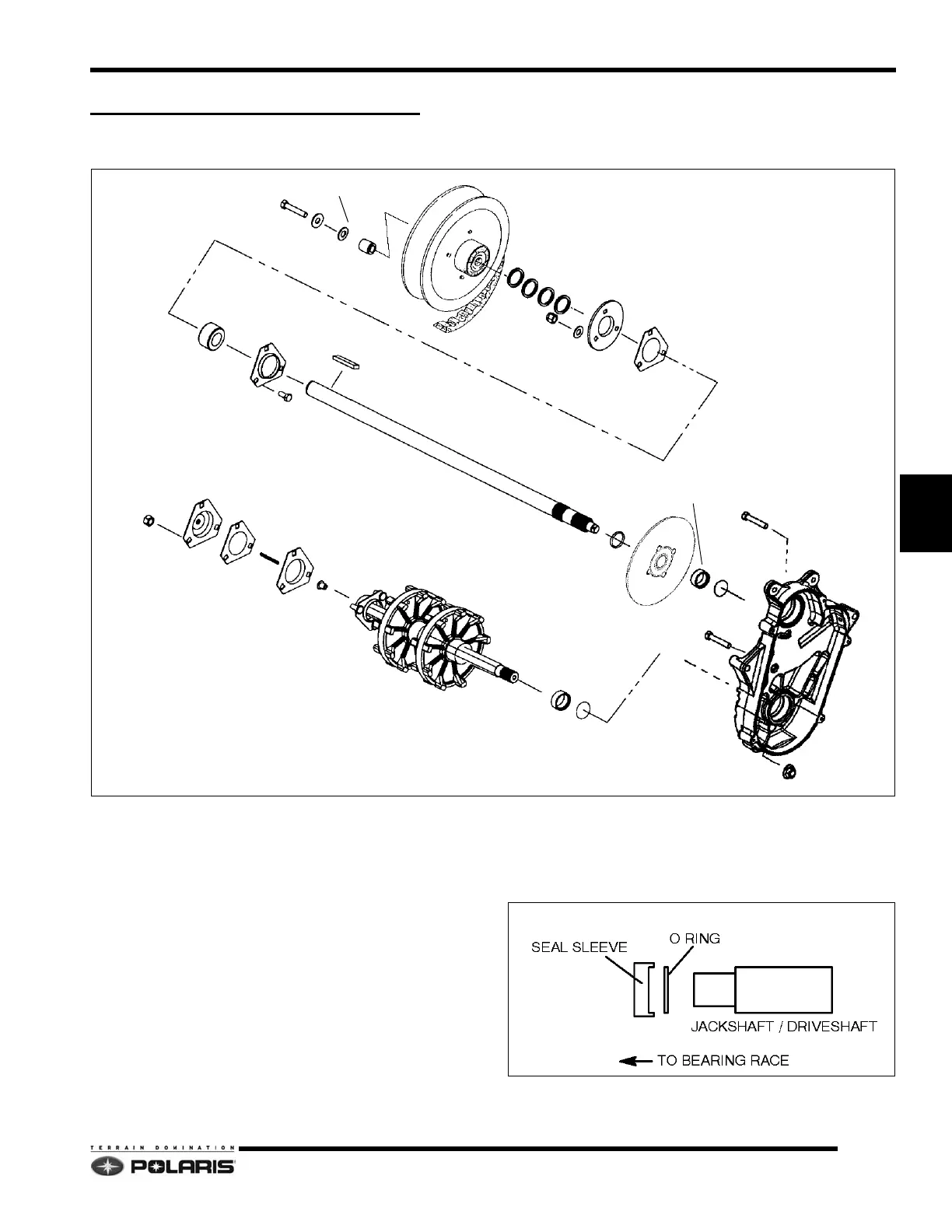

DRIVESHAFT AND JACKSHAFT
Assembly View
Driveshaft / Jackshaft Fastener Torque
A = 12 ft.lbs. (16 Nm)
B = 15 - 17 ft.lbs. (21 - 23 Nm)
C = 28 - 30 ft.lbs. (38 - 41 Nm)
(Chaincase Mounting Fasteners)
Seal Sleeve / O Ring Installation
The o-rings and seal sleeves must be installed as shown
in the illustration below to prevent chaincase oil leaks.
Verify the o- ring sits inside the sleeve.
DRIVEN CLUTCH
GASKET
LUBRICATION FLANGE
BEARING FLANGE
BEARING
SPEEDOMETER FLANGE
GASKET
OFFSET FLANGE
SPEEDOMETER DRIVE KEY
DRIVESHAFT ASSEMBLY
SEAL SLEEVE
O RING
BRAKE DISC
SNAP RING
JACKSHAFT
KEY
SPACER WASHERS
SPACER
SPACER WASHERS
SEAL SLEEVE
O RING
A
B
B
C
