MAINTENANCE
Clutch System
Drive Belt Condition
Periodically check the condition and tension of the drive belt. Inspect
the belt for signs of excessive wear: frayed edges, missing cogs, cracks
and excessive looseness. Replace the belt if any of these conditions
exist. See Drive Belt Troubleshooting on page 113.

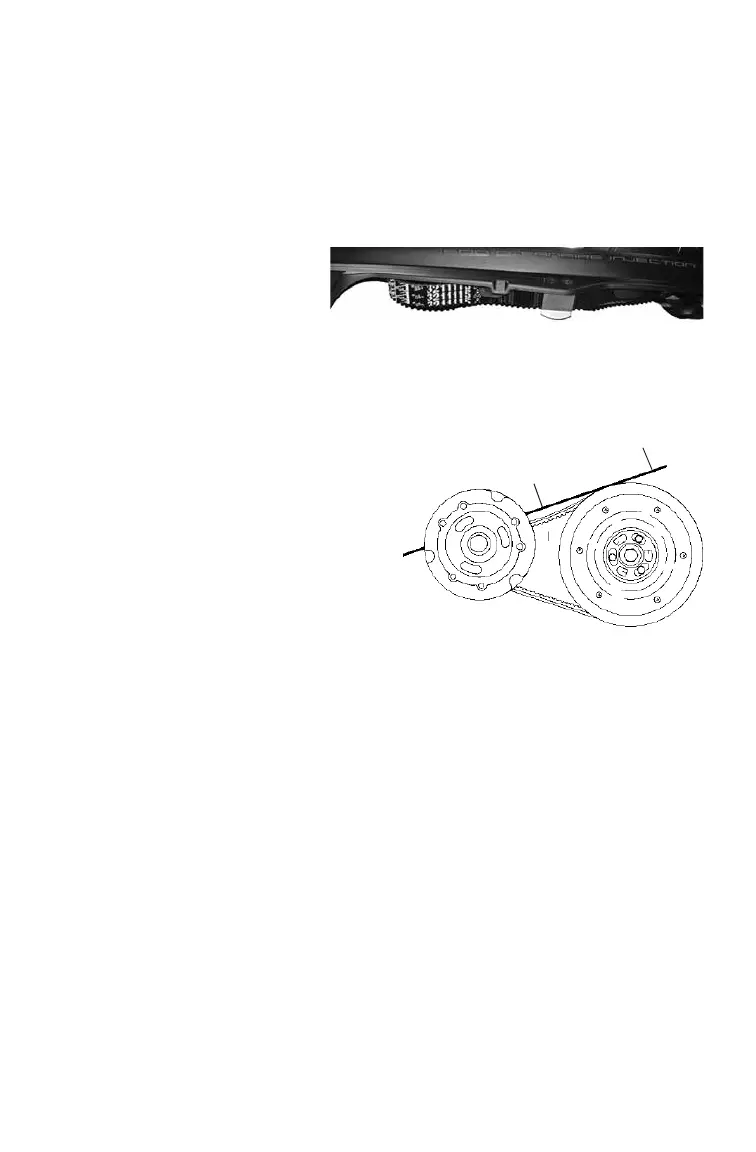

Always carry a spare drive
belt. Store the spare belt in
the belt clip located under
the left side of the hood.
For improved drive-away during extremely cold temperatures, remove
the belt and warm it to room temperature. Reinstall it before starting the
snowmobile.
Drive Belt Deflection
Measure belt deflection with
both clutches at rest and in
their full neutral position.
Place a straight edge (1) on the
belt and apply downward pres-
sure while measuring at point
2. This measurement should be
1 1/4 inches (3.2 cm).
Drive Belt Adjustment
1. Loosen the 7/16-inch jam nut on the belt width adjuster.
2. Using a 1/8-inch Allen wrench, turn the set screw inward (clock-
wise) to increase the distance between the sheaves or outward
(counter-clockwise) to decrease the distance.
3. Tighten the jam nut.
