OIL TANK

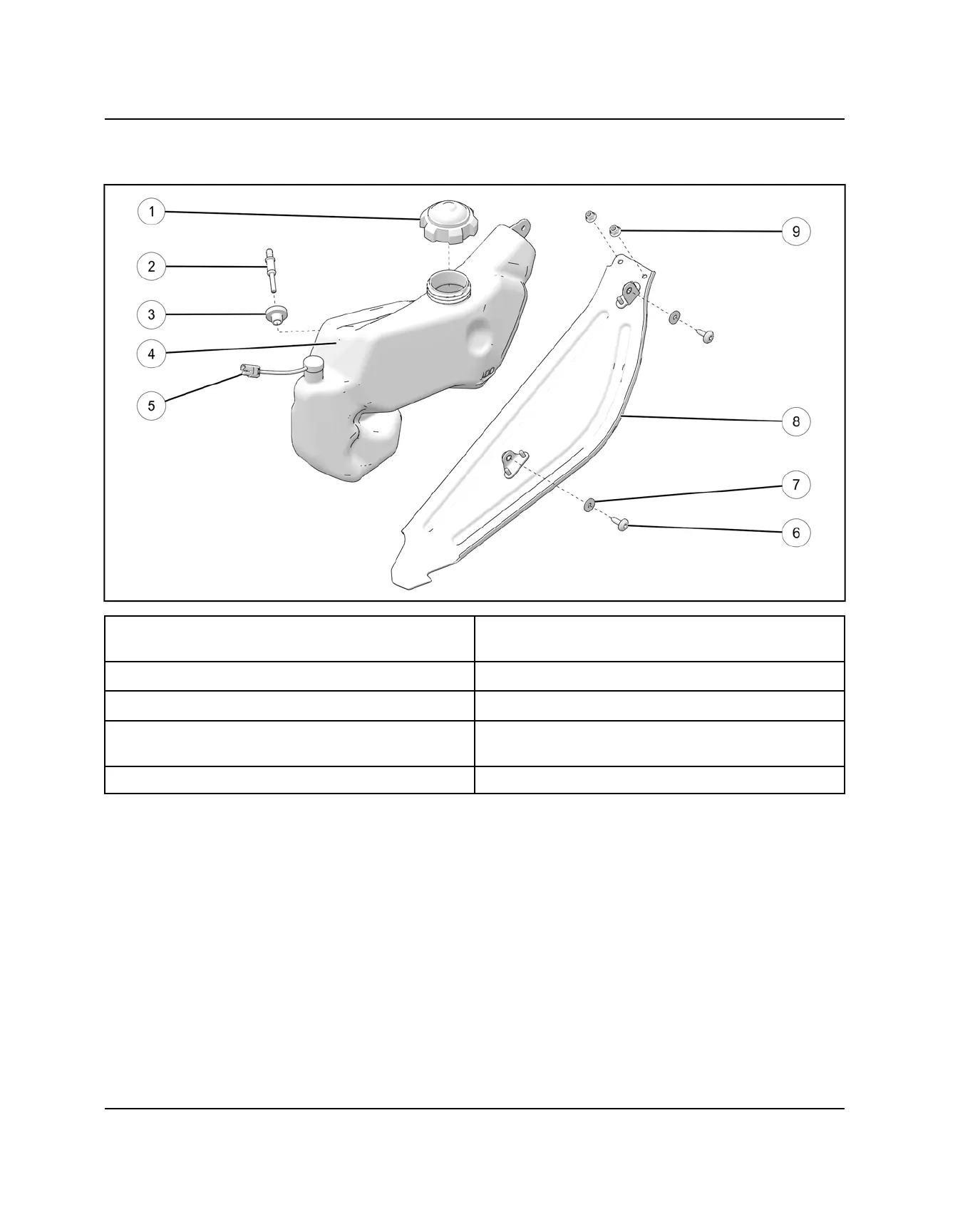

OIL TANK ASSEMBLY VIEW
q
Oil Cap
y
Oil Tank Mounting Fasteners
7 ft-lbs (9 N·m)
w
Fitting
u
Washer
e
Flanged Grommet
i
Clutch Guard
r
Oil Tank
o
Clutch Guard Fasteners
8 ft-lbs (10 N·m)
t
Oil Level Switch
