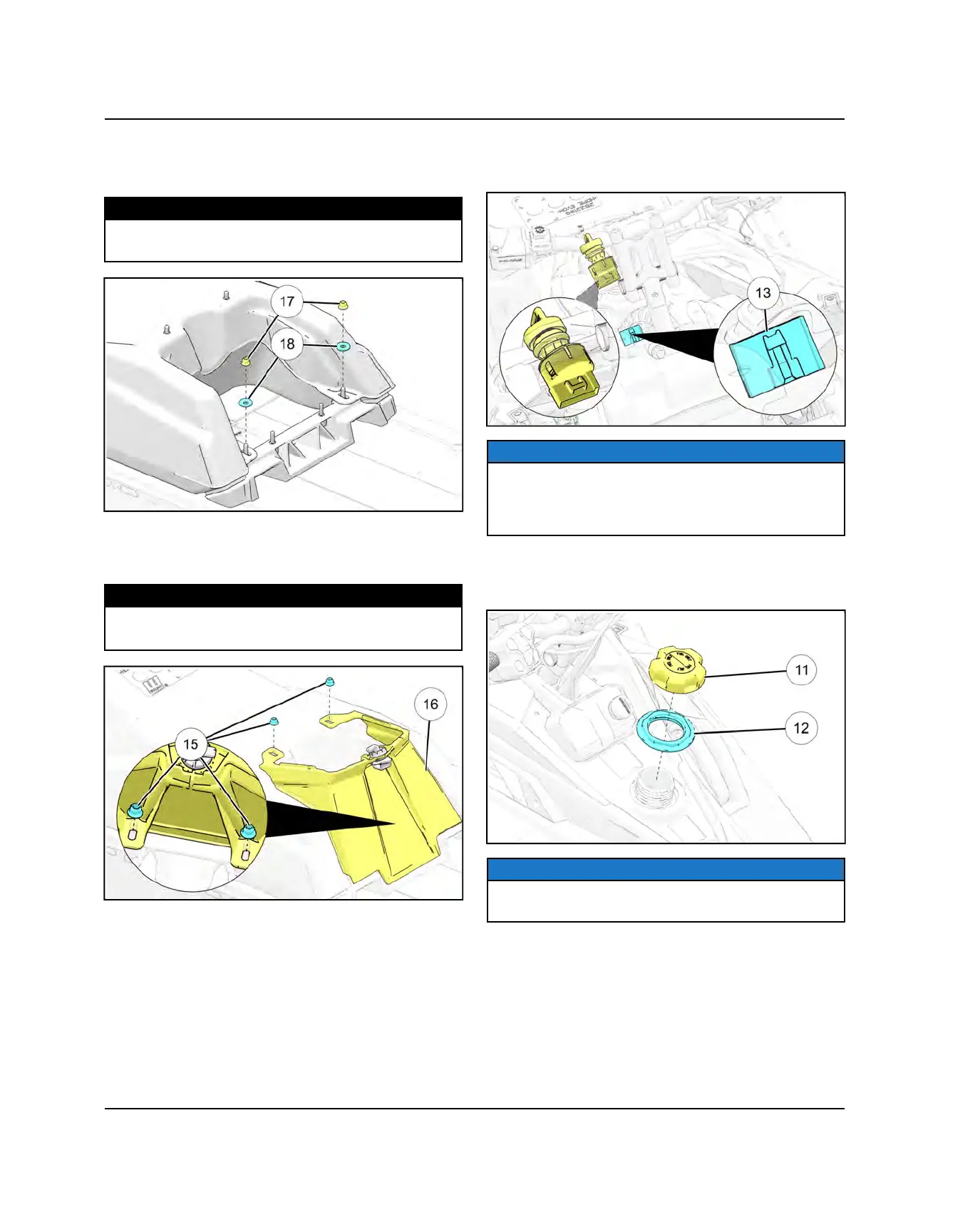

6. Install the washers
l
and nuts
k
securing the fuel
tank to the fuel tank support. Torque nuts to
specification.
TORQUE
Fuel Tank / Support Mounting Nuts:
9 ft-lbs (12 N·m)
7. Install the rear tank trim
j
and the four nuts
h
securing the rear tank trim to the fuel tank and fuel
tank support. Torque nuts to specification.
TORQUE
Rear Tank Trim Nuts:
44 in-lbs (5 N·m)
8. Place console near its installed position and connect
the main harness key switch connector
f
to the key
switch.
NOTICE
If not previously removed, the switch panel may be
removed to aid in connecting the key switch connector
and any accessory connections. Reinstall the switch
panel once all connections are made.
9. Remove the fuel cap and install the console into
position. Install the plastic fuel filler neck nut
d
and
fuel cap
s
.
NOTICE
When installing the console, make sure the o-ring on
the fuel tank neck is in place and not damaged.
