9850064 R03 - 2021 650 / 850 Matryx Trail Performance / Crossover Snowmobile Service Manual
© Copyright Polaris Inc.
10.99

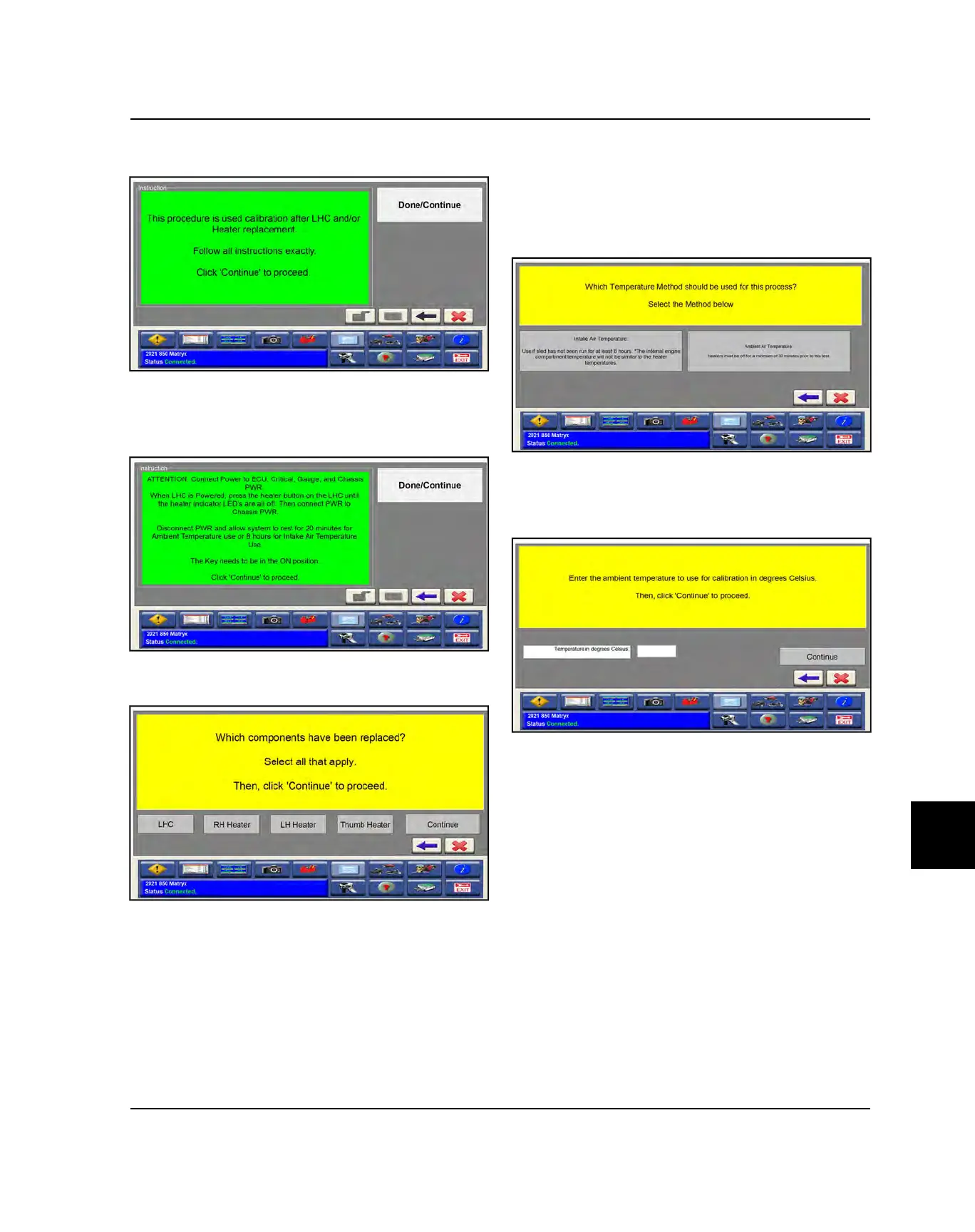

11. Click “Done / Continue” after reading the following
screen.
12.If not done previously, connect the diagnostic test
connectors, see step 5. Ensure the heated grips are
turned off (LHC LED’s are all off), Click “Done /
Continue” to proceed.
13.Select all the components that have been replaced
and then click “Continue” to proceed.
14.Select the temperature method to calibrate the grips,
in either case the hand warmers should not have
been turned on in the last 30 minutes. If the engine
has not been run in the last 8 hours the intake air
temperature maybe used. If the engine has been run
but the hand warmers have not, Ambient Air
Temperature may be used.
15.Enter the room temperature in degrees Celsius, click
“Continue”. The calibration procedure should run
successfully, if “No Response” cycle key switch and
try again.
BATTERY / ELECTRICAL
