MAINTENANCE
Clutch System
Drive Belt Installation

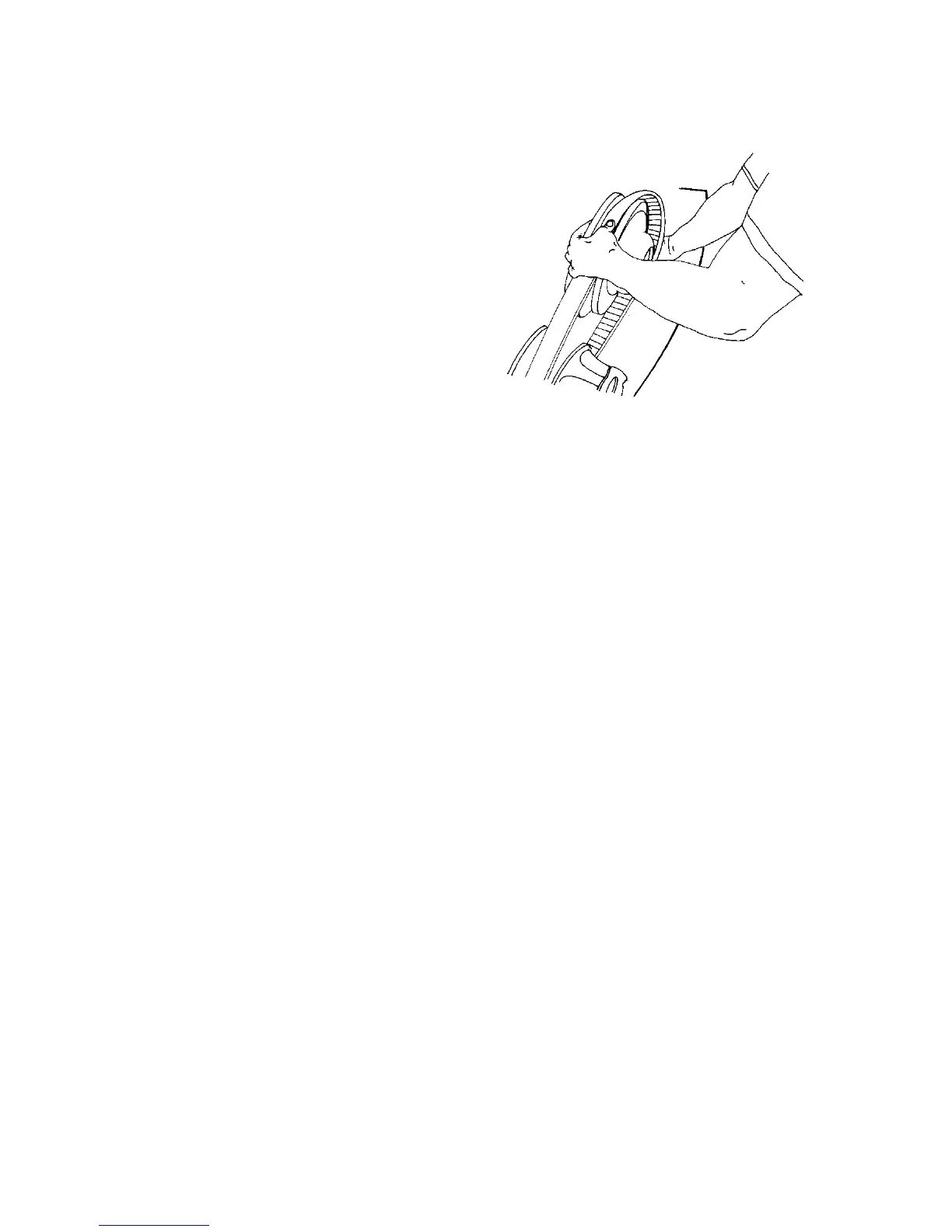

1. Drop the drive belt over the
drive clutch and pull back the
slack.
NOTE: To ensure satisfactory belt
life, install belts so they
operate in the same
direction of rotation by
positioning the
identification numbers so
that you can read them. If
required, separate the
sheaves as outlined in the
belt removal procedures.
2. Rotate the L-wrench counter-clockwise to tighten the sheaves
while working the belt to the outer edge of the sheaves.
3. Remove the wrench and store it i n the tool kit.
4. Reinstall the side panel.
5. Close and secure the hood.
