Polaris 800 RMK 2011 User Manual

62
OPERATION
Engine Stop Switch
Push down on the engine
stop switch (H) to ground
out the ignition and stop
the engine quickly. Pull
the switch up to the ON
position to allow restart-
ing.
Throttle Safety Switch
The throttle safety switch is designed to stop the engine whenever all
pressure is removed from the throttle lever and the throttle cable or
valves do not return to the normal closed position.
WARNING! Operating the snowmobile with a faulty throttle safety switch can
result in serious injury or death in the event of an accident. If the throttle safety
switch does not shut off the engine during a carburetor/throttle system
malfunction, immediately push down the engine stop switch. Do not start the
engine again until the malfunction has been corrected by your dealer.

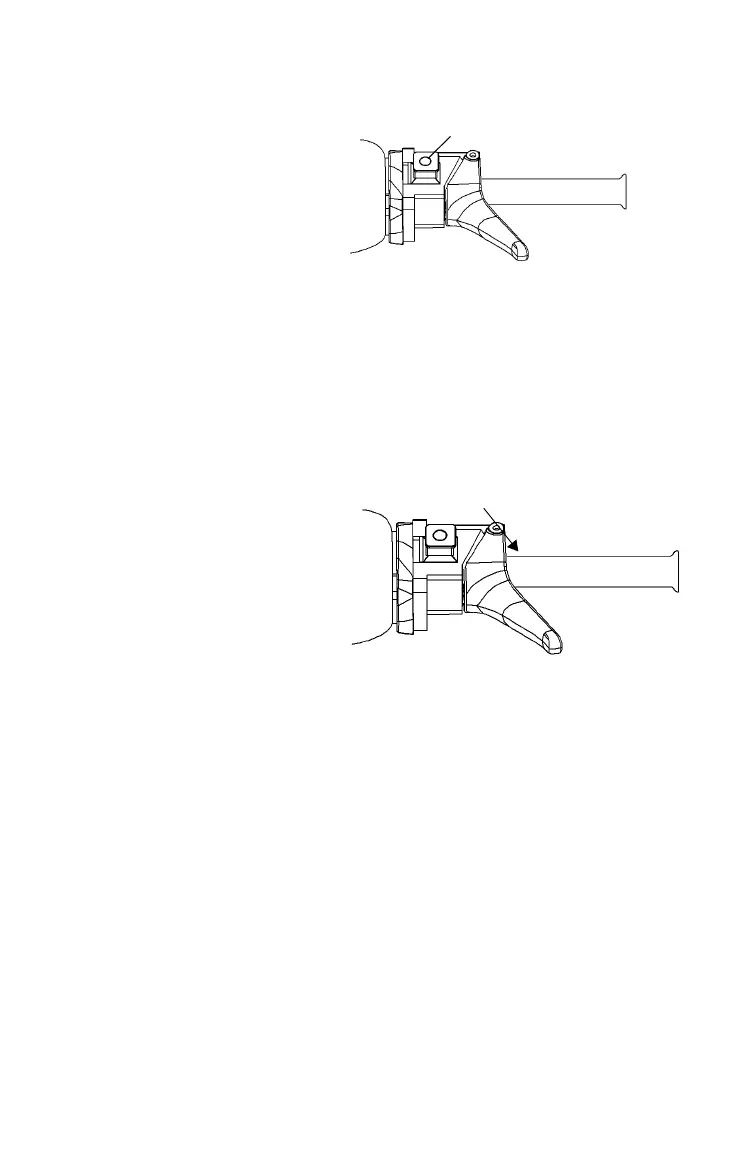

Test the throttle safety switch
system daily before operation.
1. Sit on the seat.
2. Start the engine and allow it
to idle.
3. Hold the throttle lever pin
stationary by exerting pres-
sure on the pivot pin in the direction shown in the illustration.
4. Apply a slight amount of throttle. A properly functioning switch
must shut down the engine.
H

Polaris 800 RMK 2011 Specifications

General

Engine Type	Liberty
Displacement	795 cc
Track Length	155 in
Track Width	15 in
Track Height	2.4 in
Fuel Capacity	11.5 gal
Bore x Stroke	85 mm x 70 mm
Starter	Electric
Drive Clutch	P-85
Driven Clutch	Team LWT
Height	48 in
Front Travel	9 in
Rear Travel	16 in
Ski Type	Gripper
Carburetion	Mikuni
