Polaris 800 Switchback 2016 User Manual

126
MAINTENANCE
Front Suspension Control Arms
Control Arm Pivot Adjustment
The upper and lower control arms feature slotted pivots to allow for
adjustment to compensate for bushing wear.

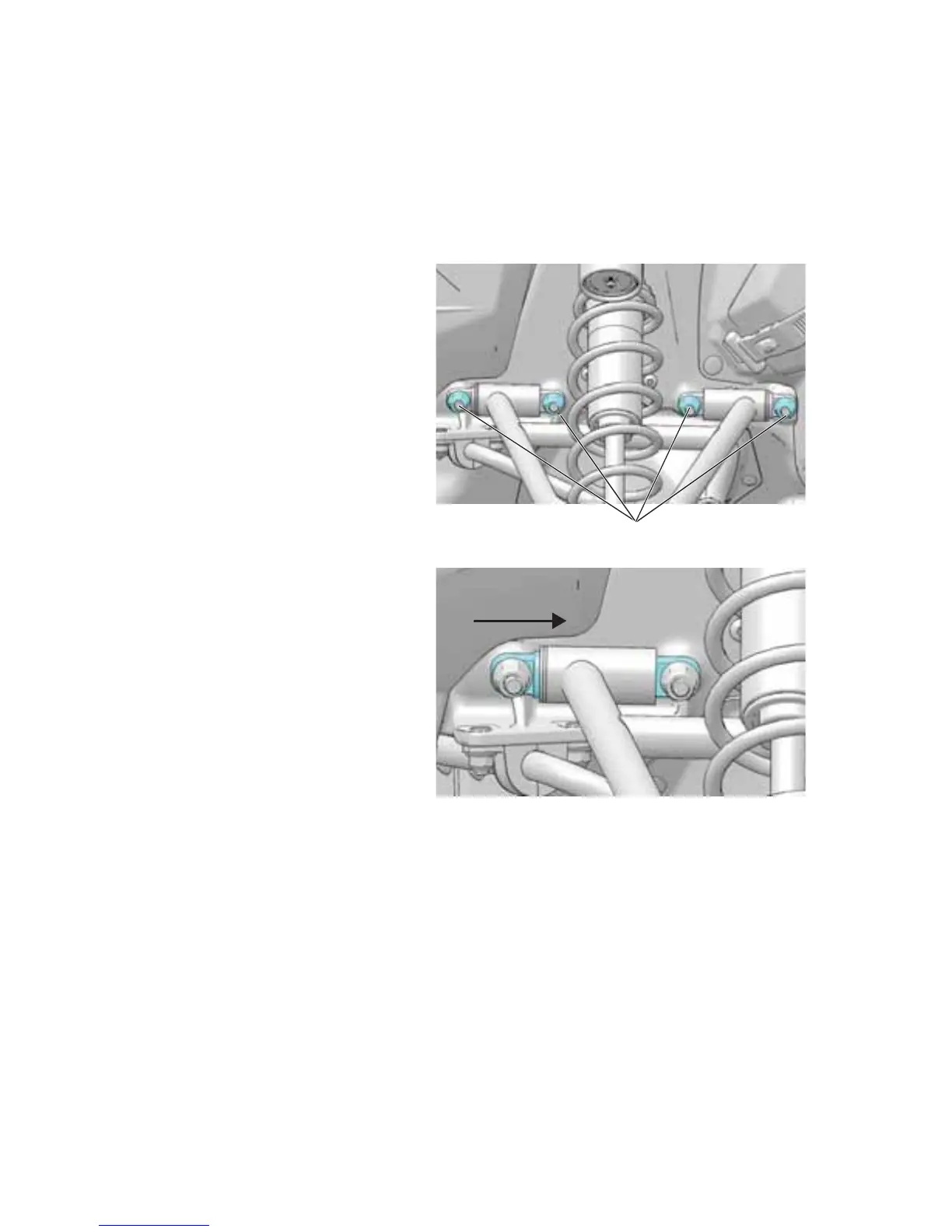

NOTE: Upper control arm shown. Procedure is the same for lower control arm
adjustment.
1. Loosen the four lock nuts.
2. From the bushing side of
each pivot, push the pivot
toward the control arm.
3. While holding the
pivot(s) in place, tighten
the lock nuts.
Torque: 30 ft-lbs (41 Nm)
Loosen Nuts
