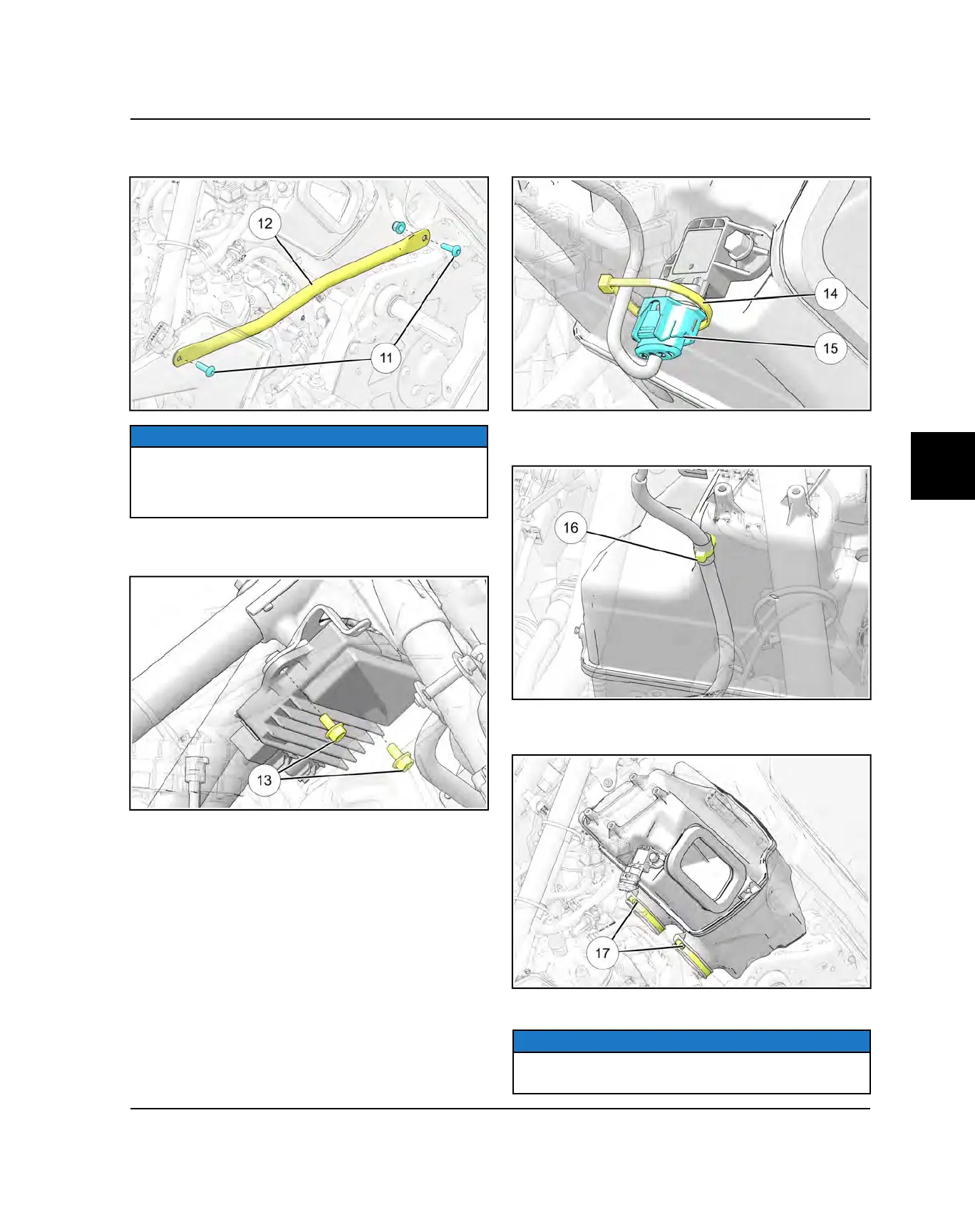

14.Remove the fasteners
s
retaining the PTO side
cross brace
d
. Remove the PTO side cross brace.
NOTICE
The PTO side chassis cross brace can either be
removed completely or remove the back bolt only and
swing the tube forward. This makes air box removal
much easier.
15.Remove the fasteners
f
securing the PBR and
carefully move the PBR to the side.
16.Cut the cable tie
g
and disconnect the T-MAP sensor
harness connector
h
.
17.Cut the cable tie of the routing clip
j
securing the
stator wiring harness to the air box.
18.Loosen the two gear clamps
k
securing the air box to
the throttle body.
19.Carefully remove the air box.
NOTICE
If removal is difficult and additional space is needed,
remove the ignition coils from the air box assembly.
