5.14
9850060 R02 - 2020-2021 850 AXYS™ Long Track Snowmobile Service Manual
© Copyright Polaris Inc.

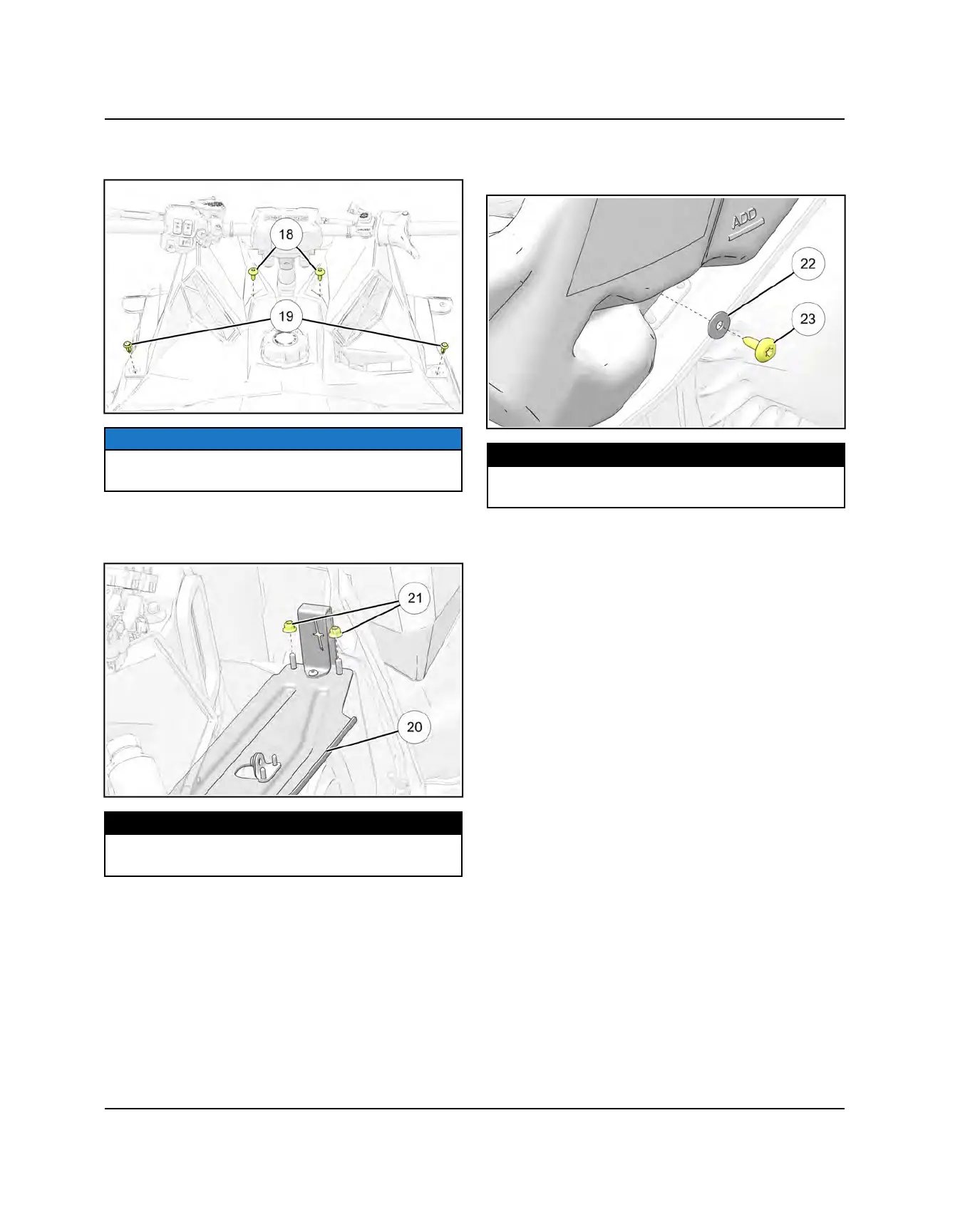

20.Install the torx fasteners
l
and push rivets
1(
retaining the intake plenum.
NOTICE
Install new strain relief cable tie to retain the wiring
harness to the intake plenum.
21.Slide the front of the clutch cover
2)
into the body
work. Install the fasteners
2!
at the rear of the clutch
cover.
TORQUE
Clutch Cover Nuts:
7 ft-lbs (10 Nm)
22.Re-install oil tank and align mounting hole. Install
washer
2@
and oil tank mounting fastener
2#
. Torque
fastener to specification.
TORQUE
Oil Tank Mounting Fastener:
7 ft-lbs (9 Nm)
23.Install the driven clutch and drive belt. See the
following procedures for installation:
• Driven Clutch Installation page 7.28
• Drive Belt Installation - AXYS page 2.25
24.Install the hood assembly and left / right engine
compartment side panels.
FUEL SYSTEM
