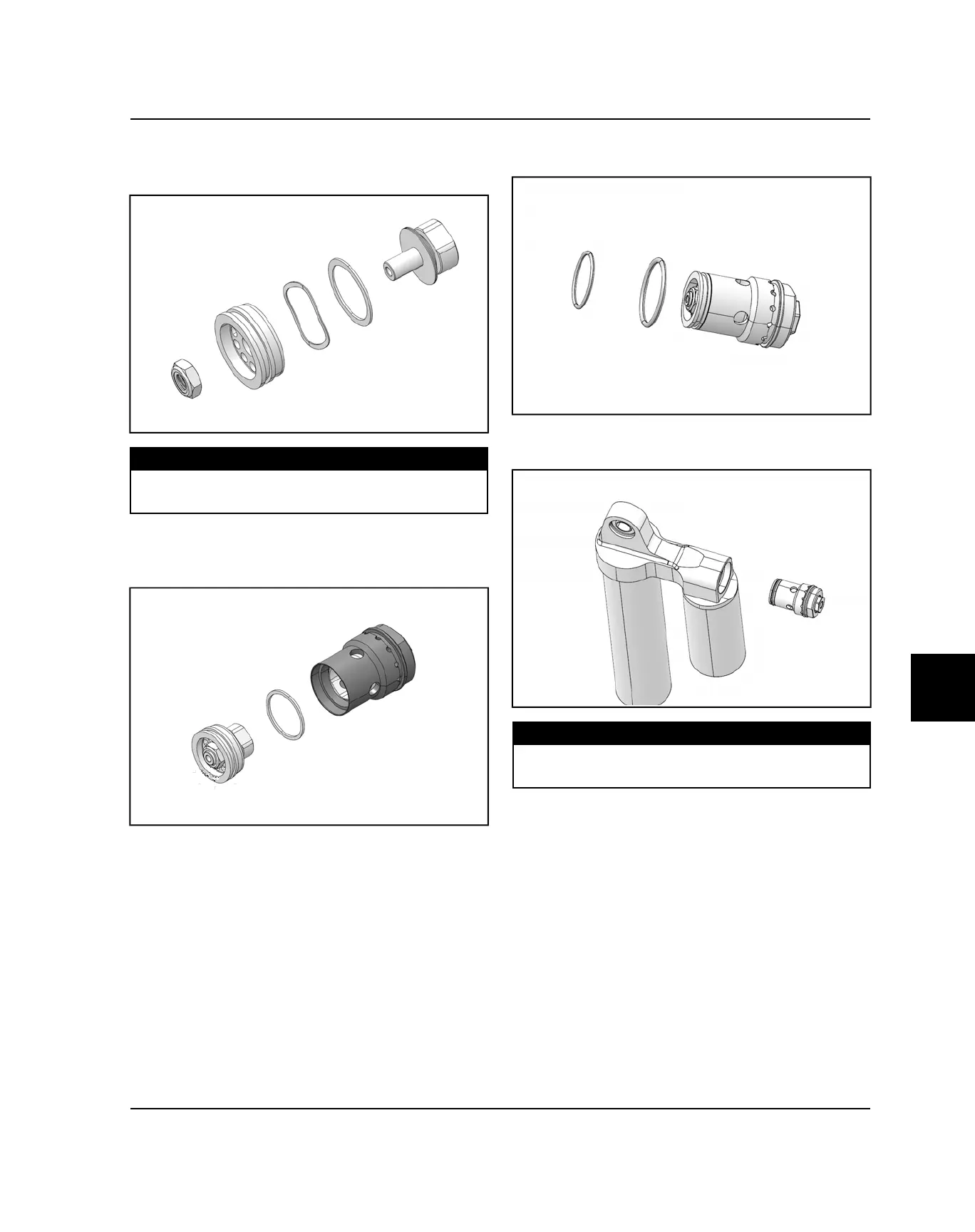

5. Install the main piston, wave washer, and check valve
washer onto the center rod. Secure with a new lock
nut. Torque lock nut to specification.
TORQUE
Main Piston Lock Nut:
10 ft-lbs (14 Nm)
6. Install the washer back into the sleeve. Push the main
piston assembly back into the sleeve making sure the
rod cam aligns with high speed main body profile.
7. Install two new O-rings. Coat the entire assembly with
shock oil.
8. Reinstall the adjuster assembly back into reservoir
mount. Torque to specification.
TORQUE
High / Low Speed Adjuster Torque:
10 ft-lbs (14 Nm)
STEERING / SUSPENSIONS
