COMPONENT TORQUE
t
Engine Stop Switch Mounting Screw 12 in-lbs (1.4 N·m)
y
Brake Master Cylinder Mounting Screw 70 in-lbs (8 N·m)
u
PERC Button Mounting Screw 35 in-lbs (4 N·m)

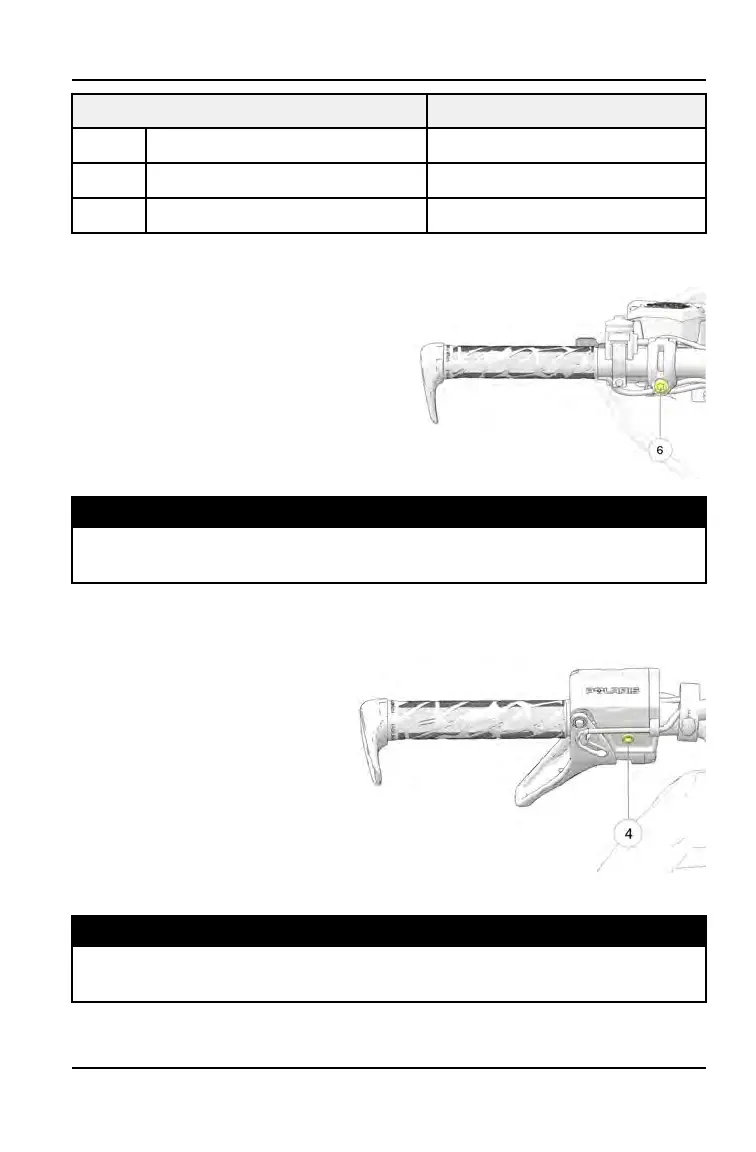

BRAKE MASTER CYLINDER ALIGNMENT
1. Loosen the mounting screw.
2. Move the master cylinder to desired
position.
3. Torque screw
y
to specification. Do
not over-torque.
TORQUE
Brake Cylinder Mounting Screw
70 in-lbs (8 N·m)
THROTTLE BLOCK ALIGNMENT
1. Slightly loosen the set screw
r
on the bottom of the
throttle block housing.
2. Move the control block to
desired position.
3. Torque the set screw to
specification. Do not
over-torque.
4. With the engine off, test
throttle lever movement after
tightening the screw.
TORQUE
Throttle Block Set Screw
27 in-lbs (3 N·m)
101
