RIDER INFORMATION CENTER
The rider information center is located in the instrument cluster. The center
displays vehicle speed, engine speed, odometer, trip meters (2), total engine
hours of operation, fuel level, engine temperature, and a diagnostic display
mode.
Setting changes must be made with the engine running or with the vehicle
powered by an external DC power supply connector. The information center is
set to display standard units of measurement for distance and temperature.
q

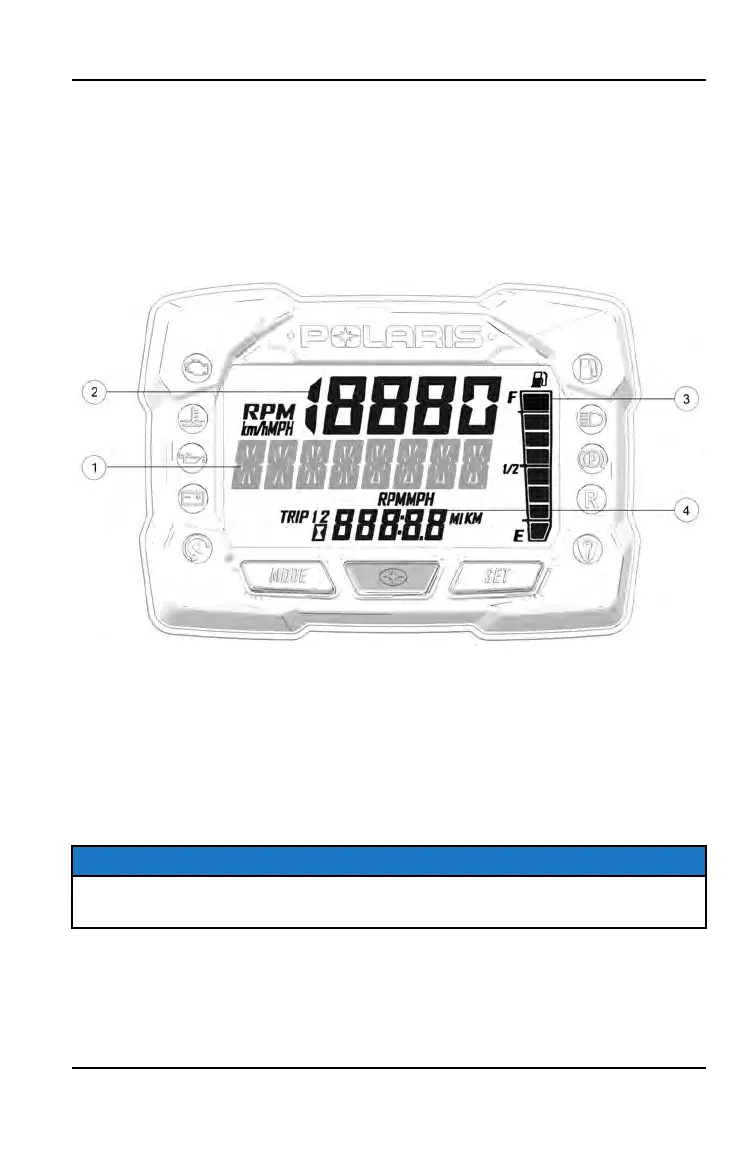

Information Display Area - Displays engine speed or vehicle speed
(whichever is not displayed in the speed display), engine temperature and
maximum vehicle speed.
w
Speed Display - Displays vehicle speed or engine speed.
e
Fuel Gauge - The segments of the fuel gauge show the level of fuel in the
fuel tank. When the last segment clears, a low fuel warning is activated. All
segments including the fuel icon will flash. Refuel immediately.
TIP
If the fuel icon fails to display, an open or short circuit has occurred in the fuel
sensor circuit. See your dealer.
r
Odometer/Engine Hour Display - This area displays the odometer, Trip A,
Trip B and engine hours.
45
