152
ADJUSTMENTS
Rear Suspension
The rear suspension spring preload, shock rebound damping
and shock compression damping may be adjusted to suit
different riding conditions and operator weight.
Spring Preload
1. Raise and safely support the rear of the ATV off the
ground to allow the suspension to fully extend.

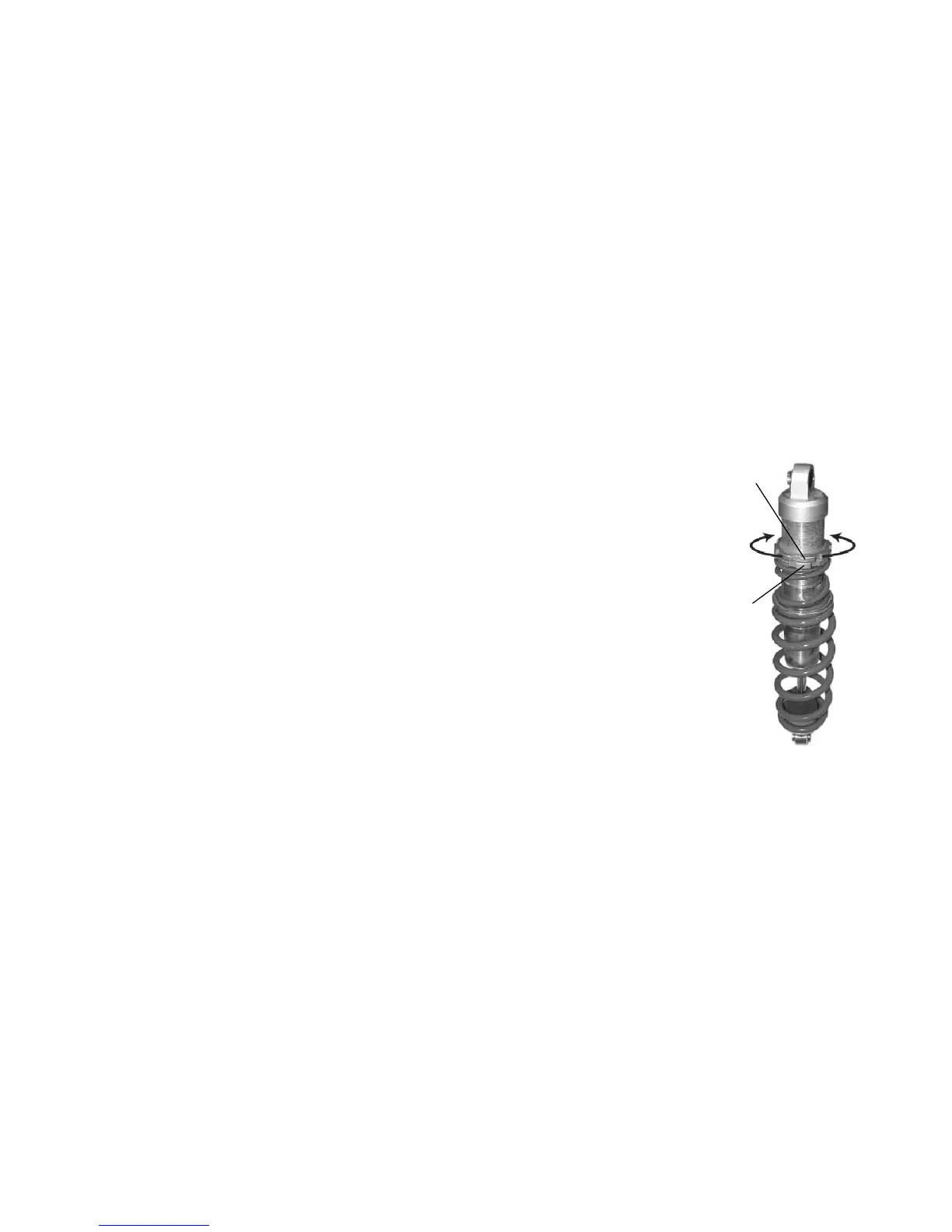

2. Loosen the jam nut (1) and back it away from the
adjusting ring.
3. Turn the adjusting ring (2) to the left (A) to increase
preload. Turn the ring to the right (B) to decrease
preload. See Suspension S ettings on page 149.
4. Tighten the jam nut firmly against the adjuster ring.
A
B
1
2
