Polaris Project User Manual

Bottom Chassis Prep / Final Chassis Assembly:

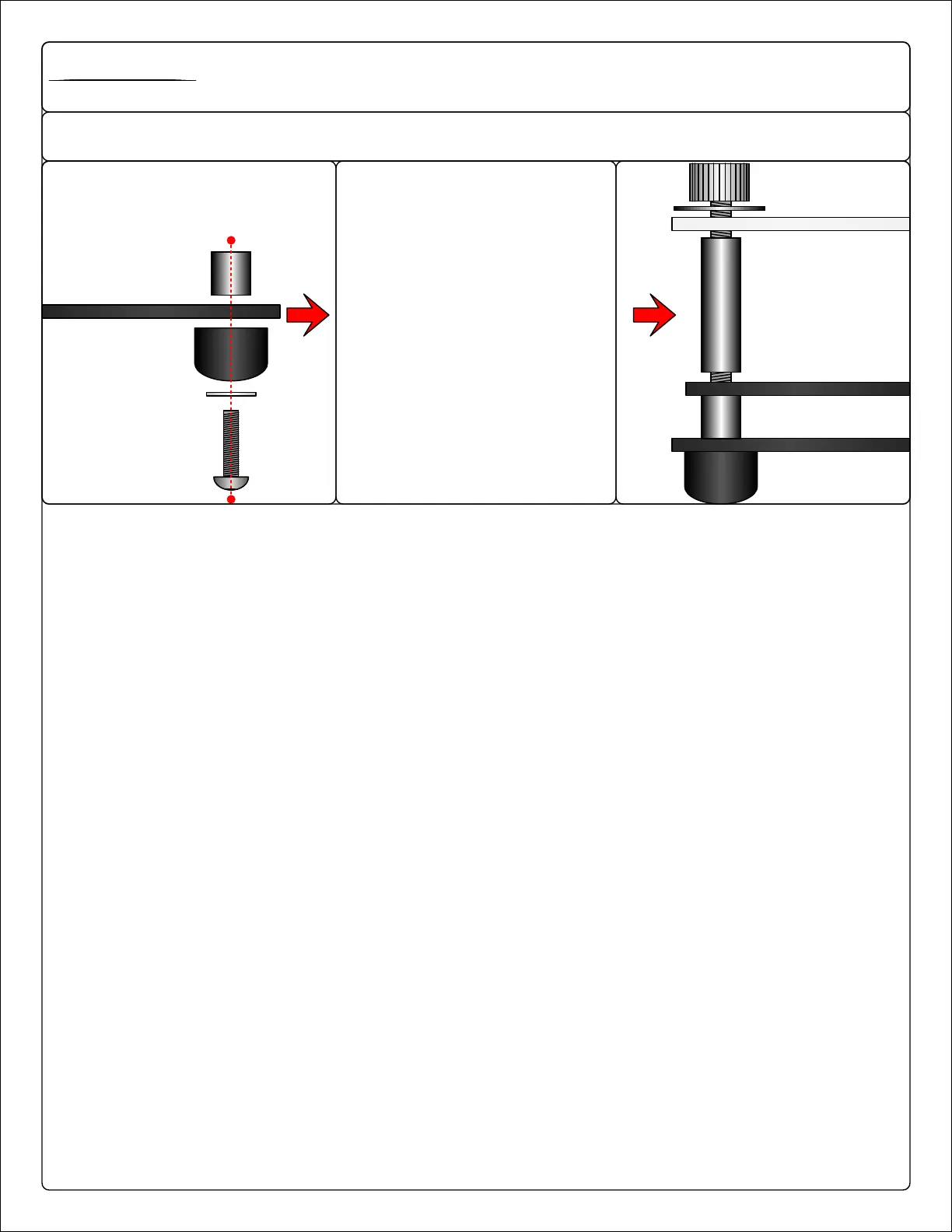

ASSEMBLE EACH OF THE 4 RUBBER FEET AS
SHOWN, ATTACHING EACH FOOT TO THE GRAY
SMOKED ACRYLIC BOTTOM CHASSIS
ALLEN BOLT +
WASHER
HEX STANDOFF
PCB
GRAY ACRYLIC BOTTOM
CLEAR ACRYLIC TOP
- ONCE THE PCB HAS BEEN ASSEMBLED,
SET IT ONTO THE FOUR THREADS
STICKING OUT OF THE BOTTOM GRAY
ACRYLIC CHASSIS THAT YOU
PREVIOUSLY ASSEMBLED.
- THREAD ON EACH OF THE FOUR HEX
STANDOFFS ONTO THE THREADS THAT
ARE NOW PROTRUDING THROUGH THE
PCB, SECURING THE PCB TO THE GRAY
ACRYLIC CHASSIS BOTTOM. PROCEED
TO POWER ON THE UNIT (AS DESCRIBED
ON PAGE 2, WEARING EYE PROTECTION
AND AT A SAFE DISTANCE IN CASE OF A
MISTAKE IN ASSEMBLY)
- ONCE THE AMPLIFIERS FUNCTIONALITY
HAS BEEN TESTED AND THE UNIT HAS
HAD A CHANCE TO FULLY WARM UP FOR
30 MINUTES, SET THE BIAS AS
DESCRIBED LATER IN THIS MANUAL
BEFORE PLACING THE TOP CLEAR
ACRYLIC COVER IN PLACE
THREADED SPACER
RUBBER FOOT
NYLON WASHER
4-40 BUTTON CAP SCREW
GRAY ACRYLIC BOTTOM
THREADED SPACER
