RIDER INFORMATION CENTER

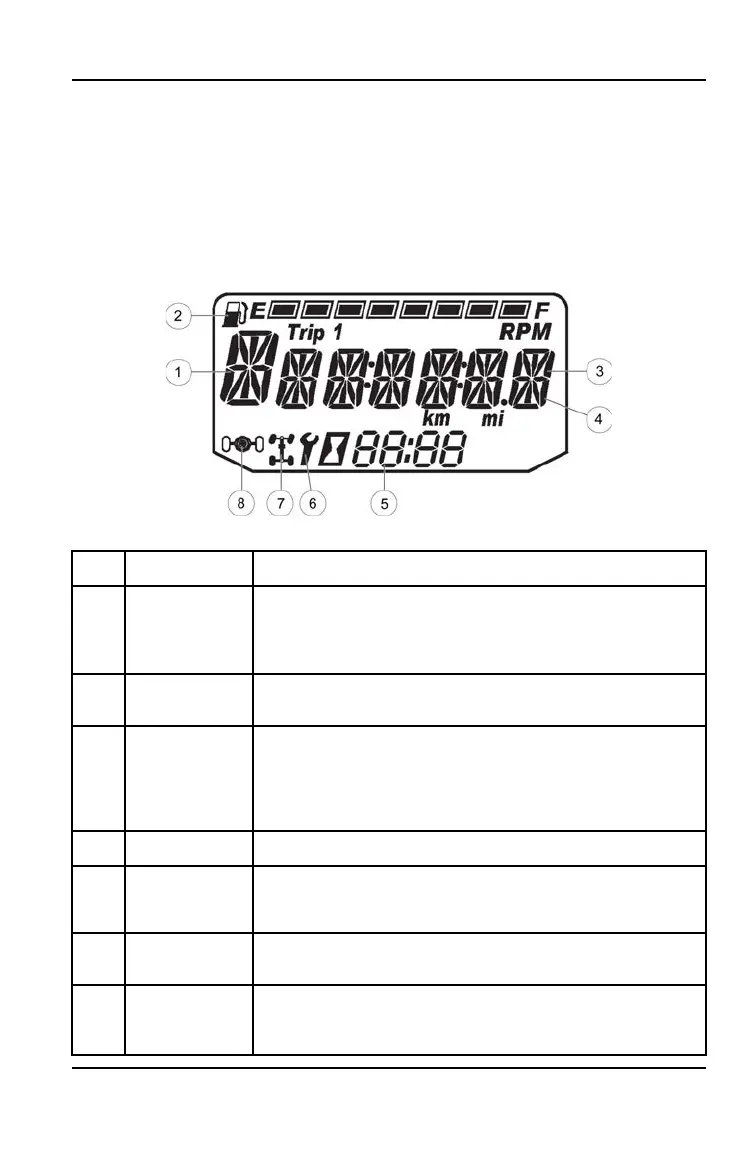

The rider information center is located in the instrument cluster. All segments will
light up for one second at start-up. If the instrument cluster fails to illuminate, a
battery over-voltage may have occurred and the instrument cluster may have
shut off to protect the electronic speedometer. If this occurs, your dealer can
provide proper diagnosis.
The information center is set to display standard units of measurement and a 12-
hour clock at the factory.
q
Gear Indicator This indicator displays gear shifter position.
w
Fuel Gauge The segments of the fuel gauge show the level of fuel in the
fuel tank. When the last segment clears, a low fuel warning is
activated. All segments including the fuel icon will flash.
Refuel immediately.
e
Information
Display Area
This area displays odometer, trip meter, engine hour meter
and programmable service hour interval.
r
Under/Over
Voltage
This warning usually indicates that the vehicle is operating at
an RPM too low to keep the battery charged. It may also
occur when the engine is at idle and high electrical load
(lights, cooling fan, accessories) is applied. Drive at a higher
RPM or recharge the battery to clear the warning.
t
Clock The clock displays time in a 12-hour or 24-hour format.
y
Service
Indicator
A flashing wrench symbol alerts the operator that the preset
service interval has been reached. Your dealer can provide
scheduled maintenance.
u
4x4 Indicator This indicator illuminates when the 4X4 system is engaged
(switch is on 4X4, AWD or ADC 4X4).
i
Turf Mode
Indicator (if
equipped)
This indicator illuminates when the operator unlocks the
differential.
45
