77
MAINTENANCE
POLARIS Variable Transmission (PVT) System
Belt Replacement/Debris Removal
5. Make sure the cover gasket does not fall out of the groove when removing the cover.
6. Squeeze the belt together so that it submarines further into the driven clutch, creating
slack in the belt between the clutches.
7. Remove the belt by using the slack to pull part of the belt off the driven clutch.
8. Rotate the driven clutch by hand until the belt is completely off.

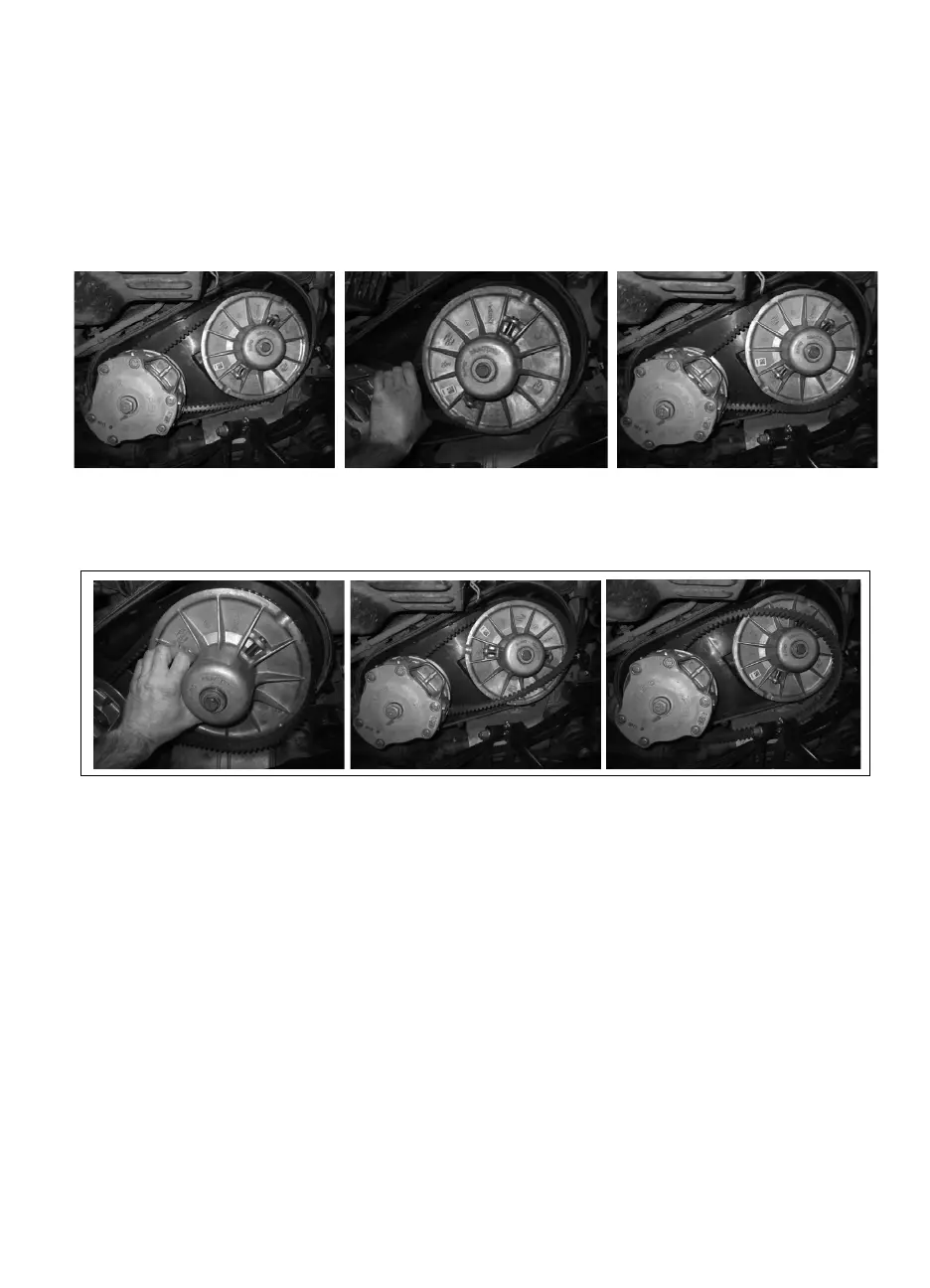

Step 5 Step 6 Step 7
Step 8
