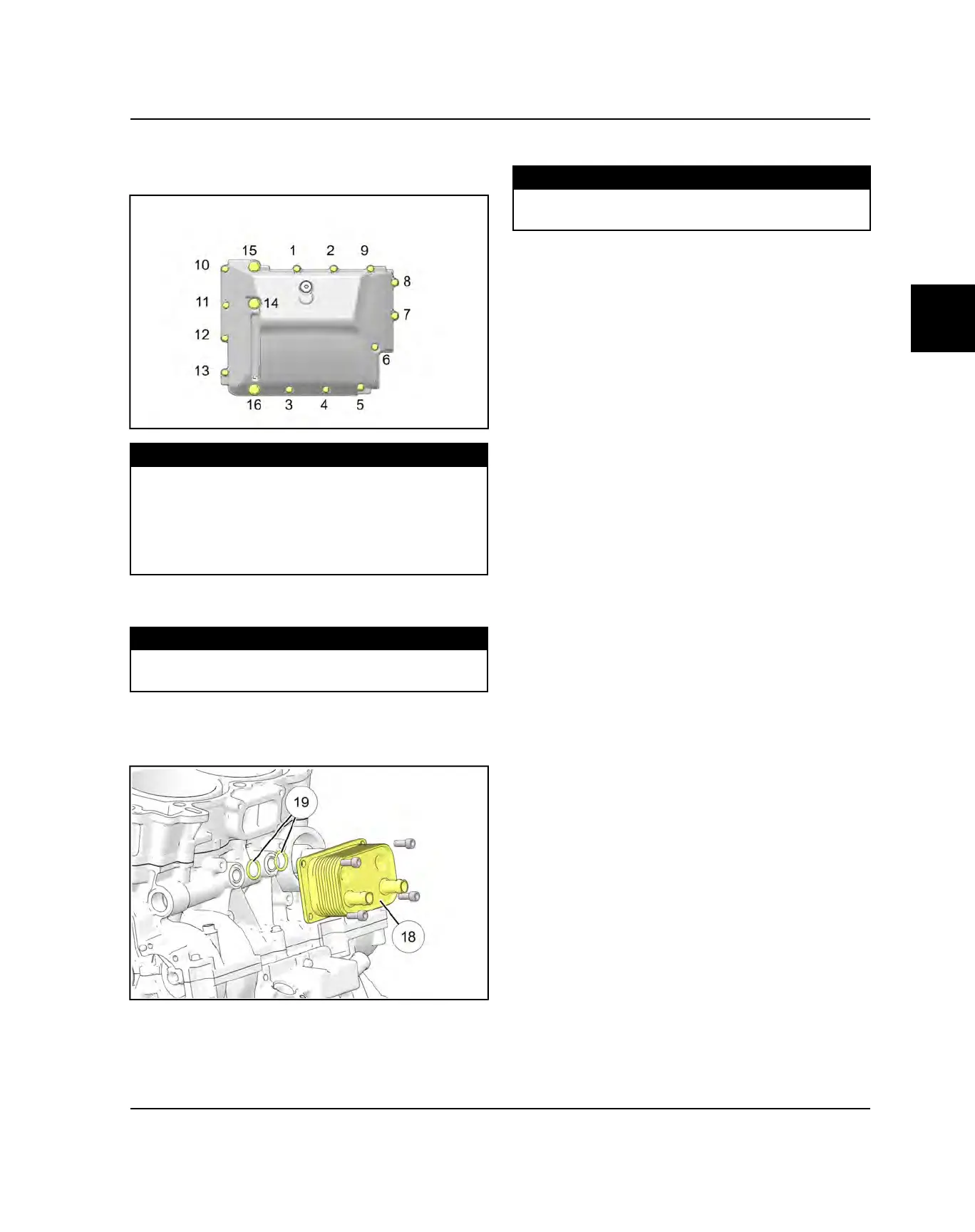

24. Torque the oil sump cover bolts in sequence to
specification. Repeat the sequence to verify final
torque.
TORQUE
Oil Sump Cover Bolts:
M6 Bolts:
9 ft-lb (12 Nm)
M8 Bolts:
26 ft-lb (35 Nm)
25. Reinstall the crankcase drain plug if previously
removed. Torque drain plug to specification.
TORQUE
Crankcase Drain Plug:
22 ft-lbs (30 Nm)
26. Rotate the engine so the cylinder is facing up.
27. Reinstall the oil cooler
l
, if previously removed. Use
new O-rings upon installation
1(
.
28. Torque oil cooler retaining bolts to specification.
TORQUE
Oil Cooler Retaining Bolts:
7 ft-lb (10 Nm)
29. Proceed to Flywheel Installation page 3.76 and then
Cylinder Head Installation page 3.79.
