9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.
8.9

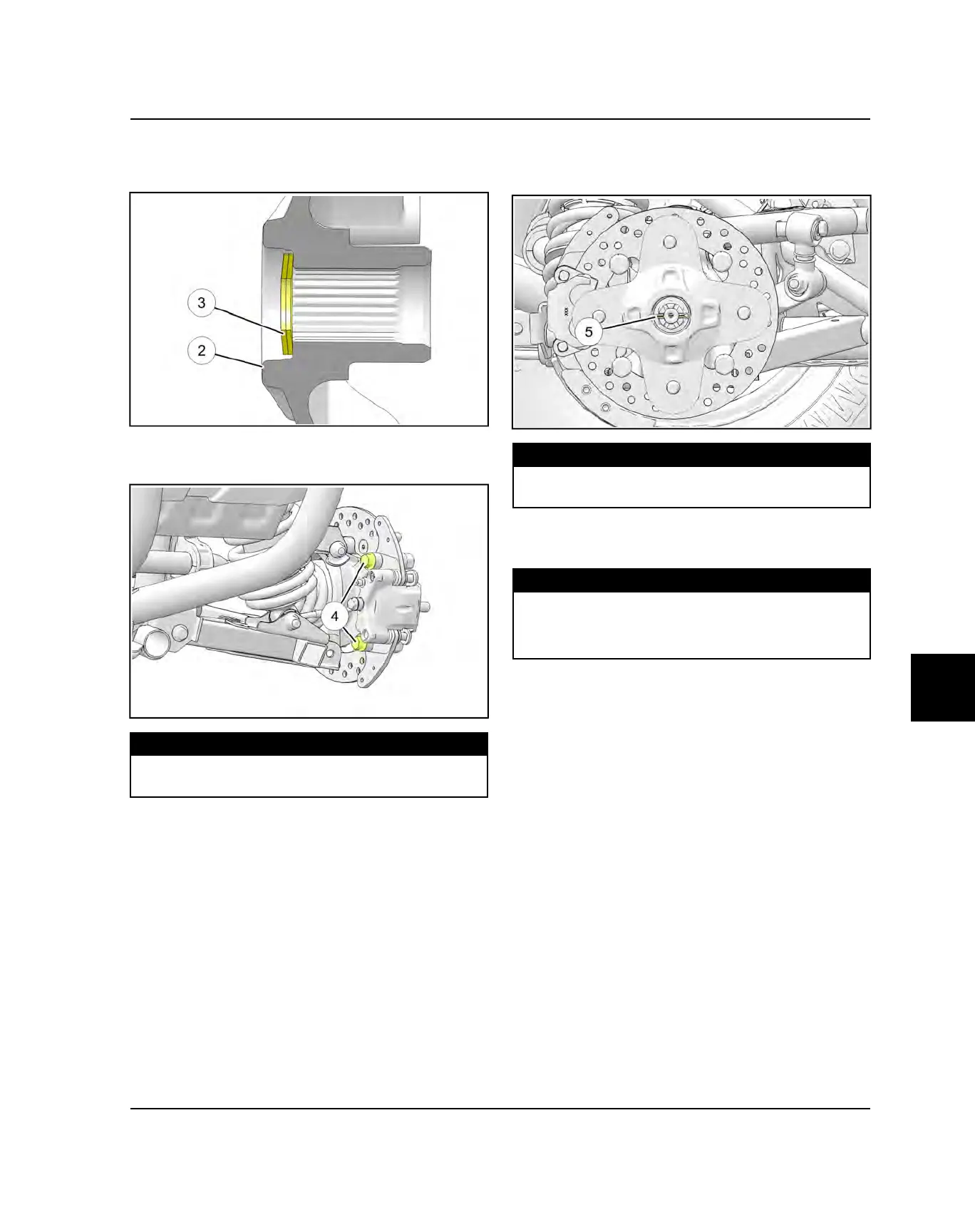

4. Install rear wheel hub assembly
w
, cone washers
e
and hand tighten the castle nut. Install washers
domed side out.
5. Install the rear brake caliper assembly and new bolts
r
. Torque bolts to specification.
TORQUE
Brake Caliper Mounting Bolts:
46 ft-lb (62 Nm)
6. Torque wheel hub nut to specification and install a
new cotter pin
t
. Tighten nut slightly if necessary to
align cotter pin slot.
TORQUE
Hub Castle Nut:
180 ft-lbs (244 Nm)
7. Install wheel and four wheel nuts finger tight. Lower
vehicle and torque wheel nuts to specification.
TORQUE
Wheel Lug Nuts:
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
8. Rotate wheel and check for smooth operation. Bend
both ends of the cotter pin around the end of the
spindle.
FINAL DRIVE
