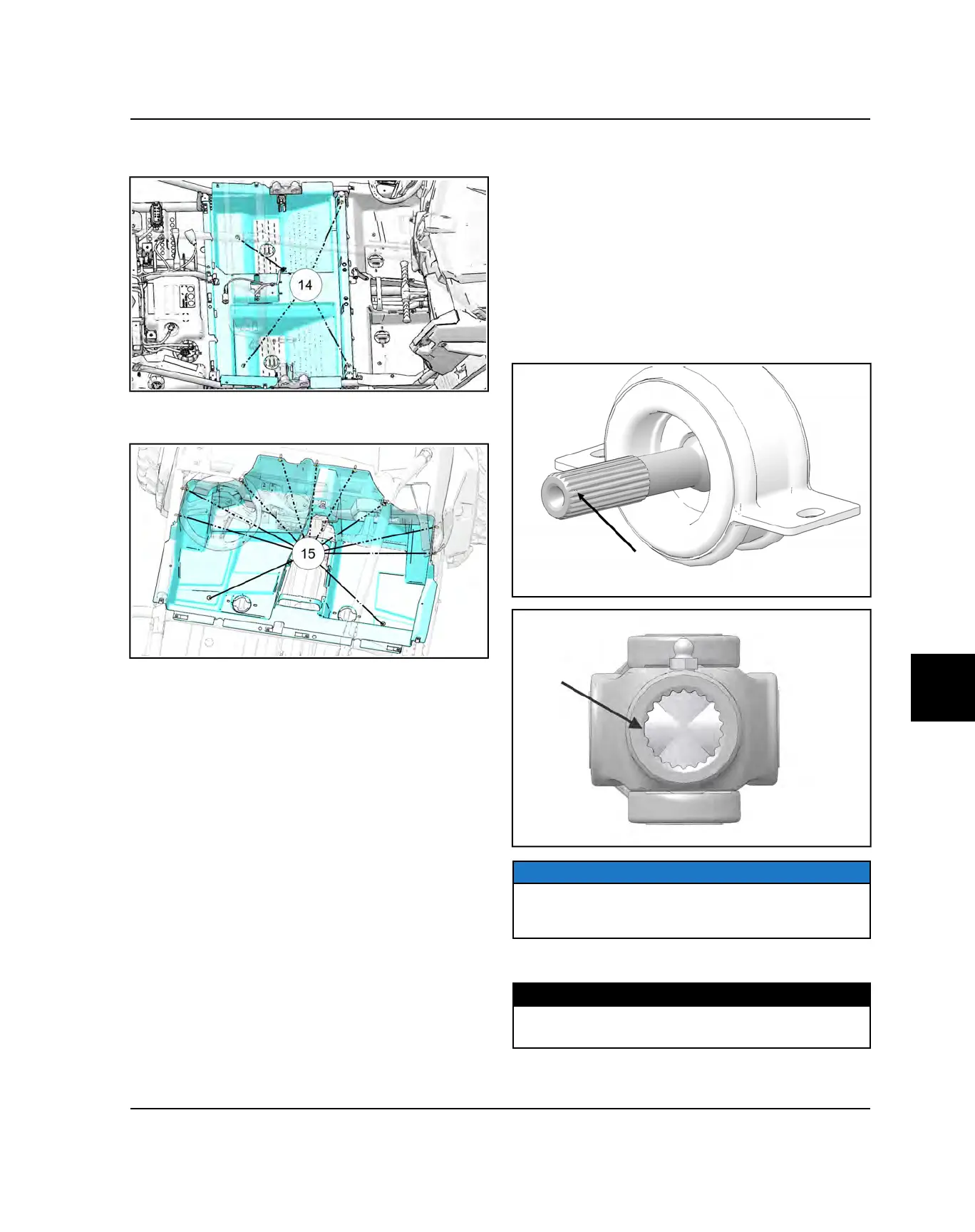

14.Remove four Torx T40 screws
g
retaining the rear
floor and remove the rear floor.
15.Remove the Torx screws
h
retaining the main floor
and remove the main floor from the vehicle.
REAR PROP SHAFT INSTALLATION 4
1000
1. Reverse the appropriate Rear Prop Shaft Removal (4
seater) page procedure to reinstall the rear prop
shaft.
2. Lubricate the transmission output shaft splines with
Polaris All Purpose Grease.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Align the front and rear prop shafts and slide them
together.
NOTICE
Paint marks are applied to the front and rear propshafts
to aid shaft alignment. Reference these marks during
installation if still visible.
5. Torque the support bearing fasteners to specification.
TORQUE
Support Bearing Fasteners:
33 ft-lb (45 Nm)
