9.32
9930588 R02 - 2017-2020 RZR 900 900/S 900/S4 1000/S 1000/S4 Service Manual
© Copyright Polaris Industries Inc.

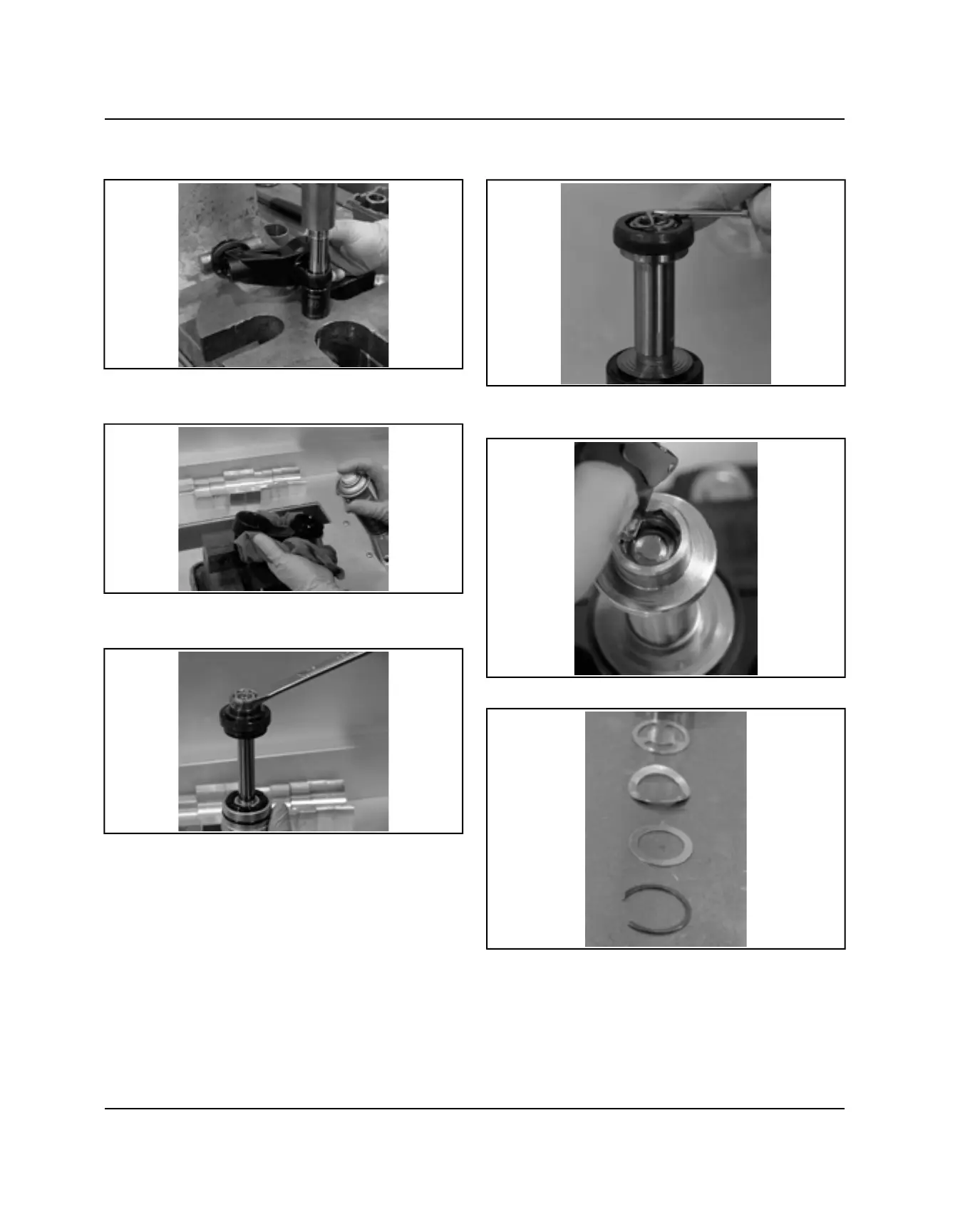

24.Press the bearing out of the body cap using a bearing
press set or assorted sockets.
25.Prep the threads on the body cap with Loctite®
primer 7649 and set aside.
26.Place shock shaft assembly in clamp blocks and
remove nut from non-BOC equipped shaft assembly.
27.For Bottom Out Cup equipped shocks, remove the
retaining ring from the Bottom Out Post
28.Remove retaining ring on BOC post assembly with
valve.
(Valving laid out in order removed from post.)
STEERING / SUSPENSION
