11.27

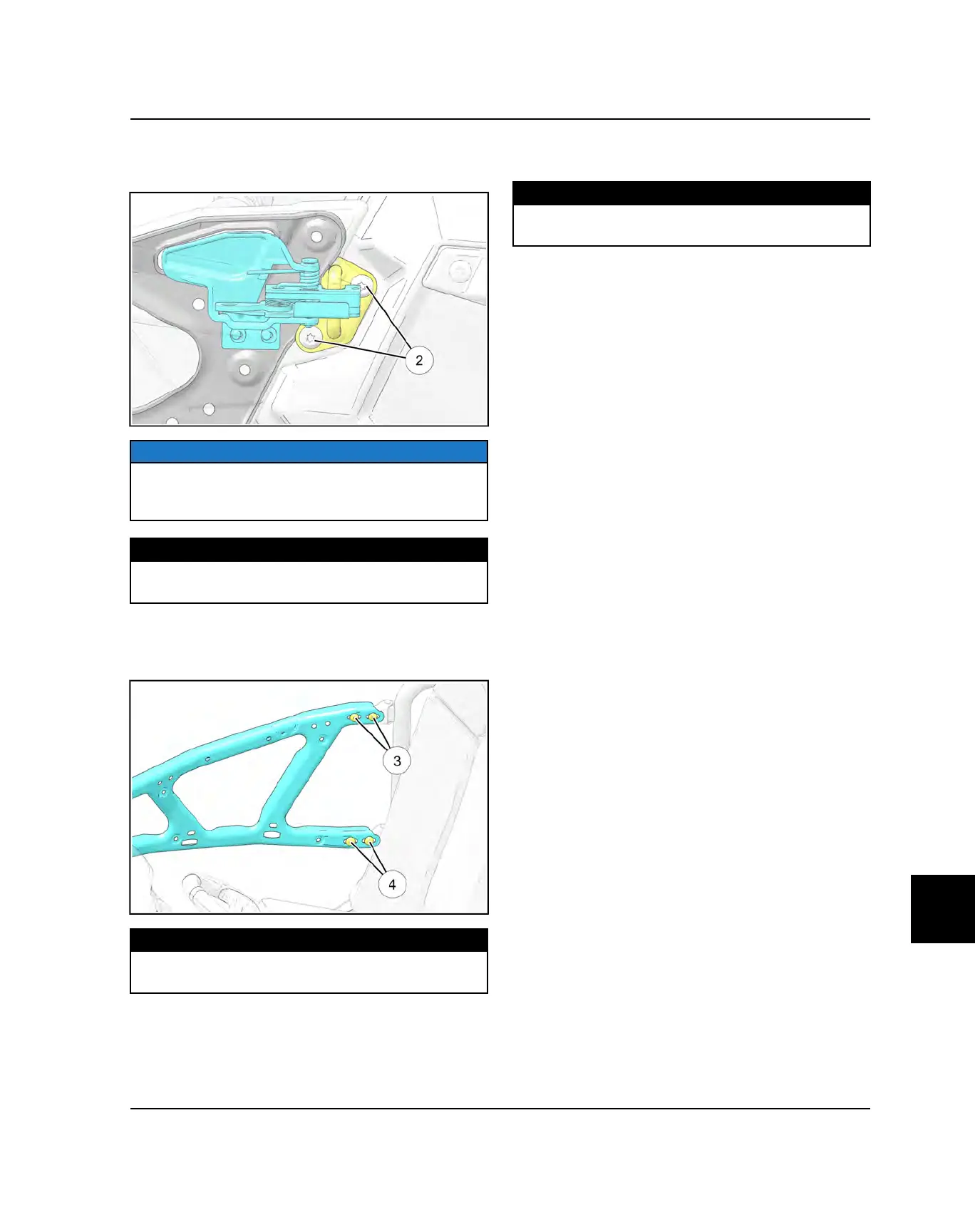

4. Adjust the door until the front latch is centered both
vertically and horizontally in the striker bracket, as
shown.
NOTICE
If it is difficult to center vertically and horizontally, loosen
striker assembly fasteners
w
for extra adjustment.
Torque striker fasteners once aligned.
TORQUE
Striker Fasteners:
8 ft-lb (11 Nm)
5. Holding the door in position, tighten the top hinge
bracket M8 fasteners
e
and then bottom fasteners
r
. Torque to specification.
TORQUE
Door Hinge Fasteners:
8 ft-lb (11 Nm)
6. Install the door panel onto the door frame. Torque
fasteners to specification.
TORQUE
Door Panel Fasteners:
22 in-lb (2 Nm)
BODY / FRAME
To Next Page
