FUSE / RELAY CENTER
If the engine stops or will not start, if the power steering stops working (if
equipped), or if you experience other electrical failures, a fuse may need
replacement. Locate and correct any short circuits that may have caused the

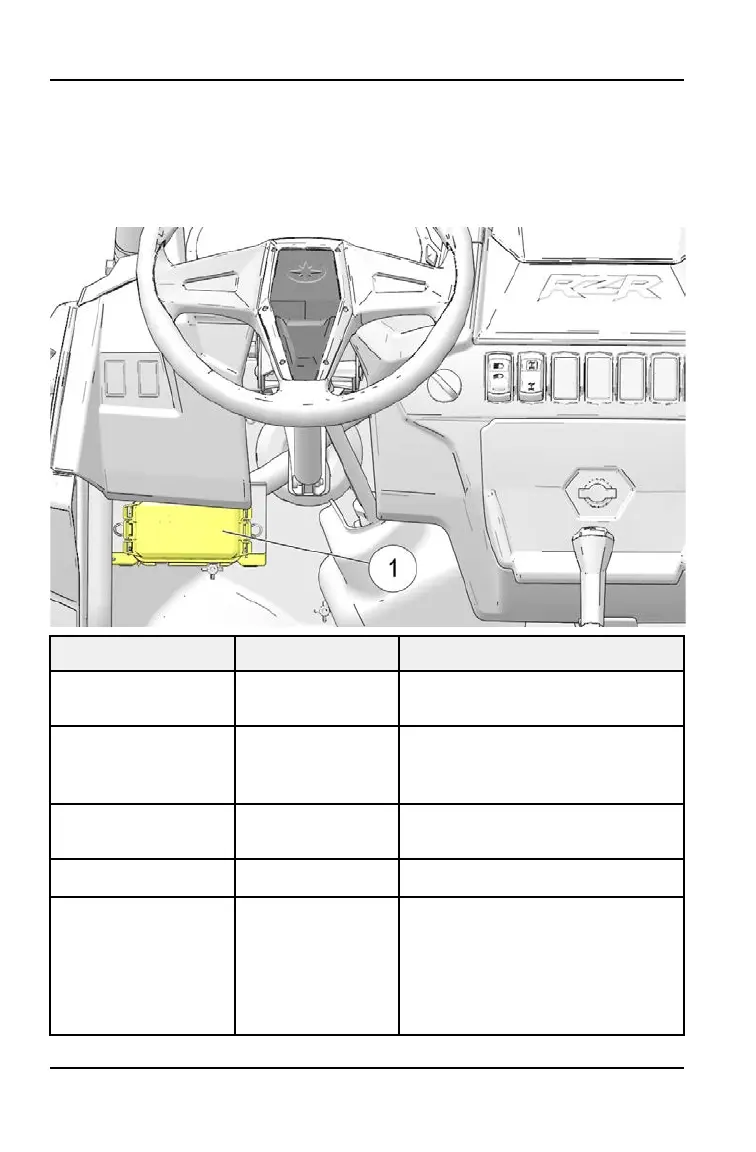

blown fuse, then replace the fuse. The fuse/relay center
q
is located near the
driver’s left knee.
LABEL VALUE FUNCTION
FAN 20A Circuit
Breaker
Fan
EFI 10A Fuse EFI Relay, Injectors, Coil, ECM,
Chassis Relay Coil, Fan Relay
Coil, Fuel Pump Relay Coil
TERM ACCY 10A Fuse Under Hood Terminal Block,
Interior LED
EPS 30A Fuse Power Steering (if equipped)
LIGHTS 900 SPORT: 15A
Fuse
1000 PREMIUM:
7.5A Fuse
1000 ULTIMATE:
7.5A Fuse
Headlights, Taillights, Dash
Lights
144
MAINTENANCE
