123
MAINTENANCE
Lights
Taillight/Brakelight Lamp Replacement (SPORTSMAN)
1. Place the transmission in
PARK.

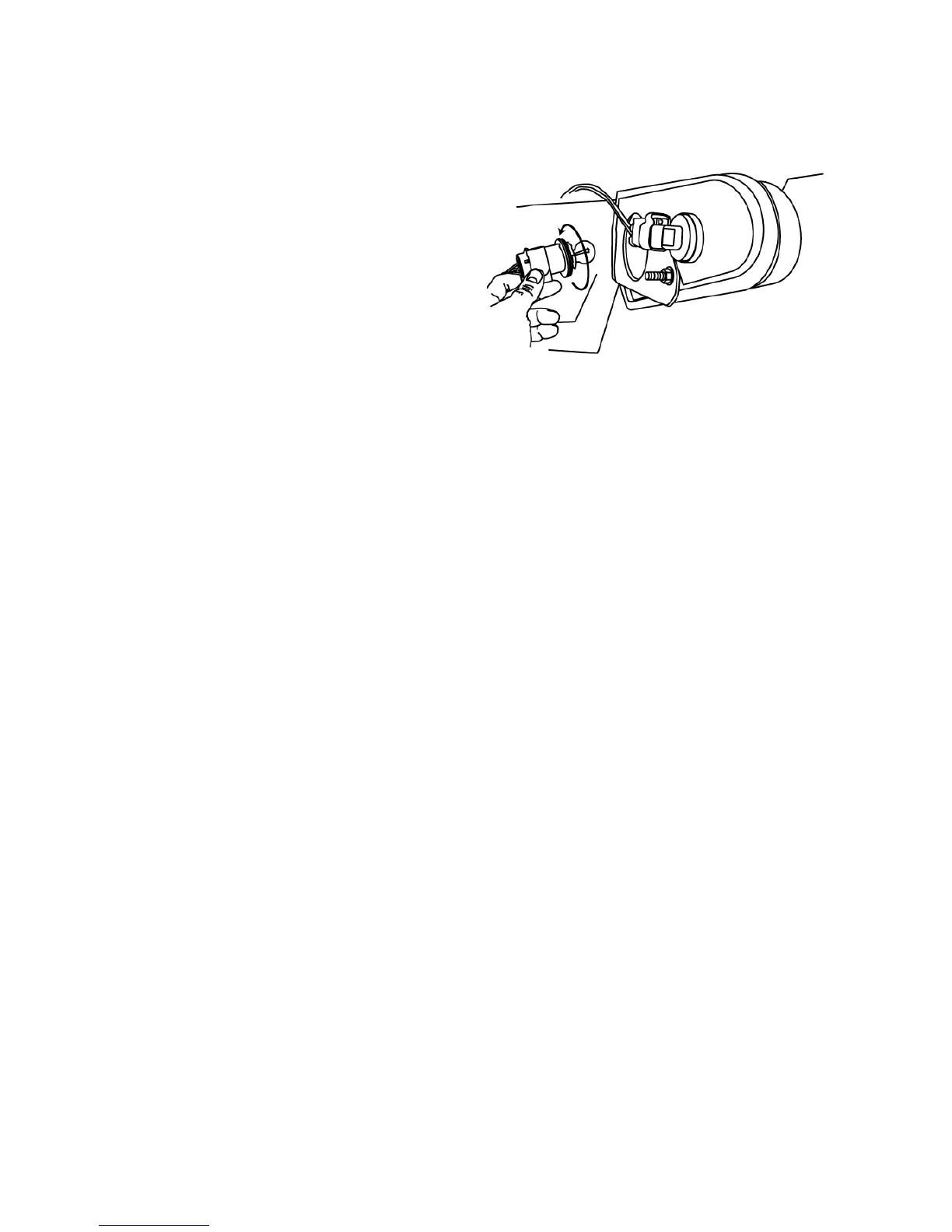

2. Rotate the taillight socket
counter-clockwise to
remove it.
3. Remove the lamp.
4. Apply dielectric grease to
the socket.
5. Install the new lamp. Test
the lamp for proper
operation.
6. Reinstall all components in reverse order.
Taillight/Brakelight Lamp Replacement (SCRAMBLER)
The taillight assembly is not serviceable. If the light fails to operate
properly, replace the entire taillight assembly.
Taillight/Brakelight/Turn Signal Lamp Replacement
(SCRAMBLER ZUGMACHINE)
The taillight assembly is not serviceable. If the light fails to operate
properly, replace the entire taillight assembly.
