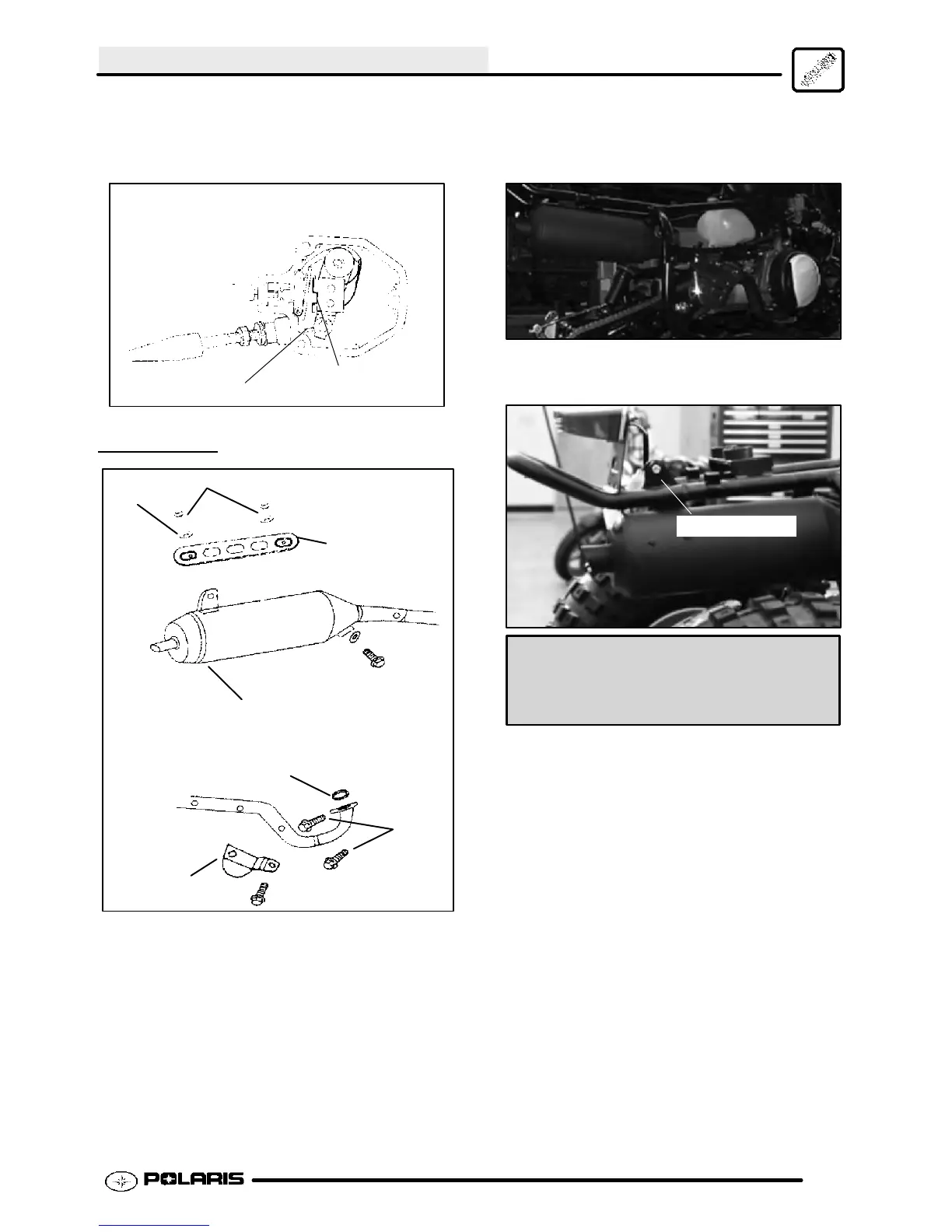

BODY/STEERING/SUSPENSION
4.15
8. Open the throttle ETC switch box and lightly
grease the throttle cable (A). Install the throttle
cable.
Electronic Throttle Control (ETC) Switch
ETC Micro
Switch Button
A
(Cast Aluminum Throttle Housing)
MUFFLER
Bolts
Gaskets
Exhaust Pipe
Protector
Exhaust Pipe
Gasket
Hex Bolts
Fixed Plate
1. Connect the muffler to the cylinder and install.
Inspect sealing gaskets upon installation.
Replace if necessary.
2. Connect the muffler to the mounting bracket on
the frame. Tighten bolt to specification.
Muffler Bracket
Muffler Mounting Bolt Torque:
25 ft.lbs. (34 Nm)
