What's in the Box & Wiring Diagram
1) ToyotaLUXX Unit.
2) Main Power Harness (Toyota Specic Harness)
3) GPS External Antenna.
4) External Bluetooth Microphone.
5) RR,RL,FR,FL Aud Out & SUB / VID out 1&2 cable.
6) VID in / AUX L / AUX R cable.
7) CAM in / Front CAM IN cable.
8) 2 x USB cables / Bluetooth mic input cable.
9) Polaris Reverse Camera with RCA adaptor.

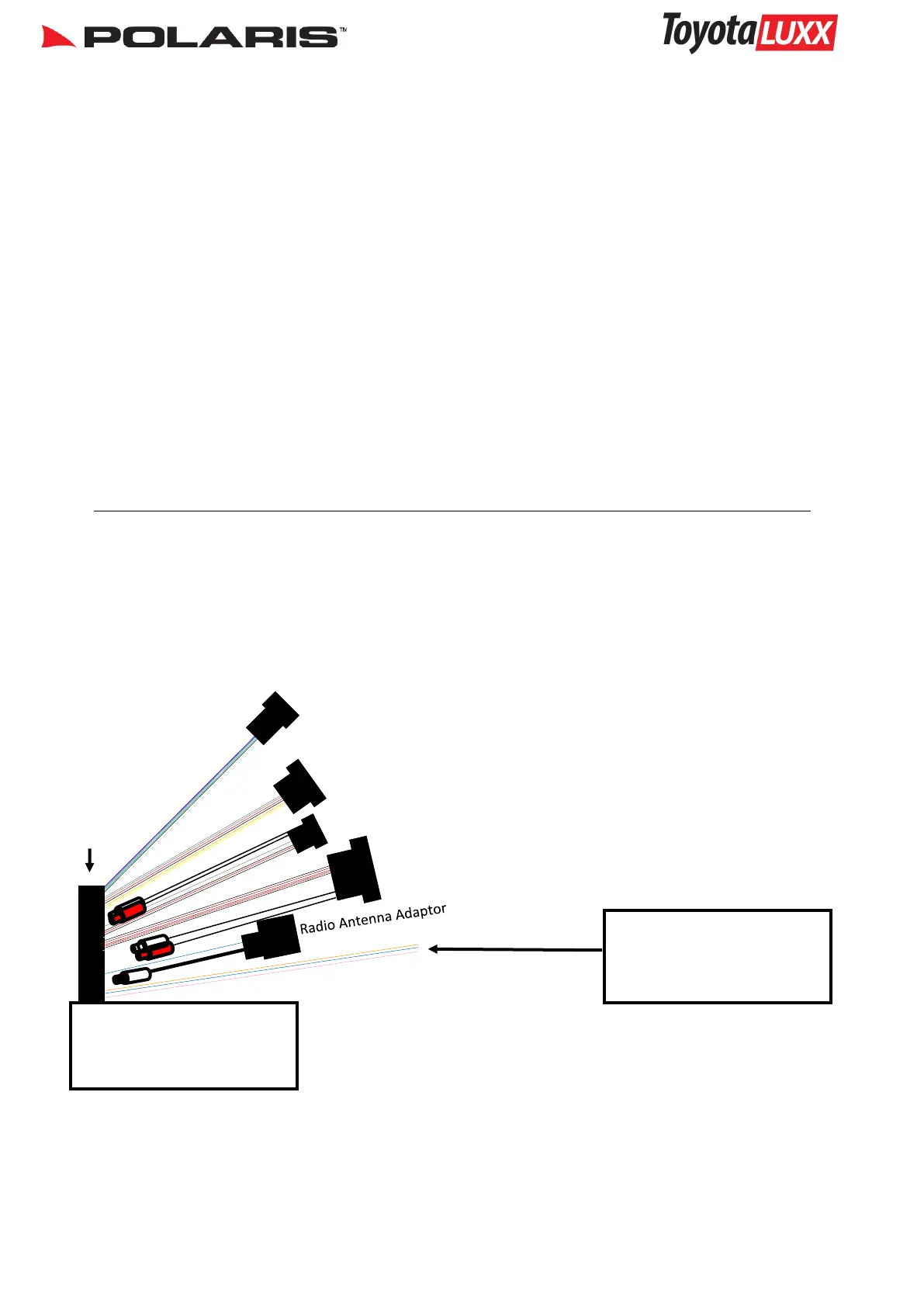

Toyota Power Harness
Connects to
ToyotaLUXX
RCA plugs
Red RCA: AUX in R
White RCA: Aux in L
4 pin plug— Rear Speakers: plugs into OEM Harness
8 pin plug— Main power + Front speakers: plugs into OEM harness
6 pin plug— Steering wheel controls for newer Toyota vehicles
Orange w/black stripe: Reverse In
Blue w/white stripe: AMP Ctrl
Pink—Brake In
6 pin plug— Steering wheel control plug for older Toyota Vehicles
